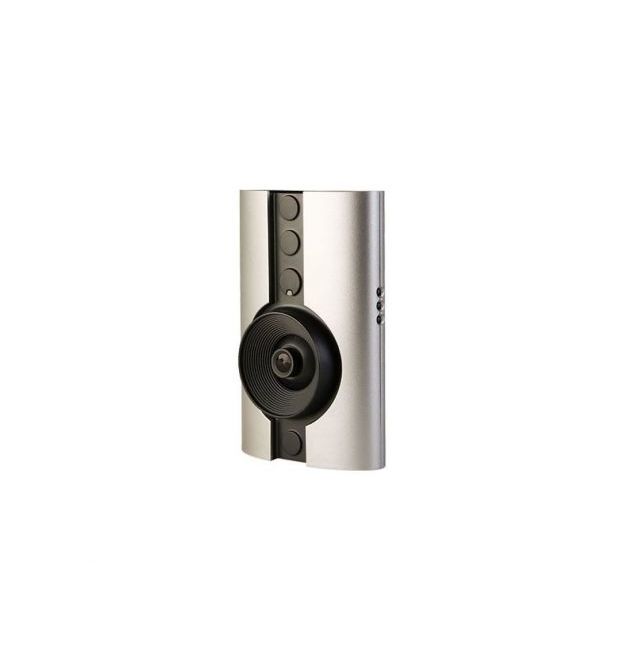

Logitech Indoor Video Secu. Master S | 961-000005
Overview:
Monitor your home or business with the Logitech Indoor Video Security Master System, the video security system you can install in 15 minutes. Easy setup gets you up and running fast for immediate viewing ? no new wires to run, no network configuration. The flexible PC-viewing options let you see live footage or store it on your hard drive for later replay. Motion-activated cell-phone and e-mail alerts quickly update you when you?re on the go. Free remote viewing via the Internet allows you to log into a secure, Web-based account to view live video online ? anywhere, anytime. Plus, you can add up to five more Logitech Indoor, Outdoor or Clock Add-On Cameras in any combination for maximum coverage.
Features:
- Easy setup gets you up and running fast for immediate viewing ? no new wires to run, no network configuration.
- Flexible PC-viewing options let you see live footage or store it on your hard drive for later replay.
- Motion-activated cell-phone and e-mail alerts quickly update you when you?re on the go.
- Free remote viewing via the Internet allows you to log in to a secure, Web-based account to view live video online ? anywhere, anytime.
- Support for up to six cameras lets you add Logitech Indoor, Outdoor or Clock Add-On Cameras in any combination for maximum coverage
Specifications for the product series | |
| Product Code | WC-LiVSMS |
| Basic | |
| Processing power | 400 MHz DSP |
| Image encoding | Windows Media Video 9 |
| Image processing | Motion detection up to 16 zones, Auto brightness |
| Resolution | Selectable: 640:by:480 pixels or 320:by:240 pixels |
| Frame rate | Selectable: 15, 10, or 5 frames/second |
| Bit rate | Selectable |
| Color depth | 10 bits |
| Illumination | 2 lx minimum per IEC 61146:1 |
| Lens | |
| Focus | User:adjustable |
| Viewing angle | 80 (diagonal) 50 (manual) |
| Firmware updates | Selectable: manual or automatic |
| Operating Environment | |
| Operating temp. range | +32 F to +93 F (0 C to +34 C) |
| Storage temp range | 4 F to +140 F (:20 C to +60 C) |
| Humidity (storage and operating) | 5% to 95% (relative; non:condensing) |
| Voltage | 110 Volts AC [U.S.] 220 V [Europe], 50 Hz [U.S.] 60 Hz [Europe] |
| Power supply to camera cabling | CAT:5e, RJ:45 connectors, 10 feet (3m) |
| User provided requirements | CAT:5e, RJ:45 connectors, up to 120 feet (36m) |
| Connector pin out | Per IEEE 802.3 |
| Property size | Up to 10, 000 square feet, 900 square meters |
| Physical Dimensions | |
| Power Consumption | 15 Watts |
| Camera | body dimensions : Height: 5.0 inches (12.7 cm); Width 3.2 inches (8.1 cm);Depth: 1.8 inches (4.6 cm) |
| Power supply dimensions | Height: 3.8 inches (9.7 cm); Width 2. 9 inches (7.4 cm); Depth: 2.6 inches (6.6 cm) |
| Camera weight | 6.1 oz (173 g) |
| System Requirements | |
| Recommended CPU speed (GHz) | 1.4 (1 camera) |
| Recommended PC memory (MB) | 384 (1 camera) |
| PC Video card memory (MB) | 32 (1:2 cameras) |
| Recommended DirectX 9 compatible | |
| Display resolution | 1024:by:768 pixels or higher, 32:bit color |
| Hard drive (MB) | 100 MB for program and a minimum of |
| 500+ MB for video storage | |
| Operating system | Microsoft Windows Vista (32/bit), Microsoft Windows XP Home Edition, XP Professional or XP Media Center Edition |
| Other | Internet access required |
