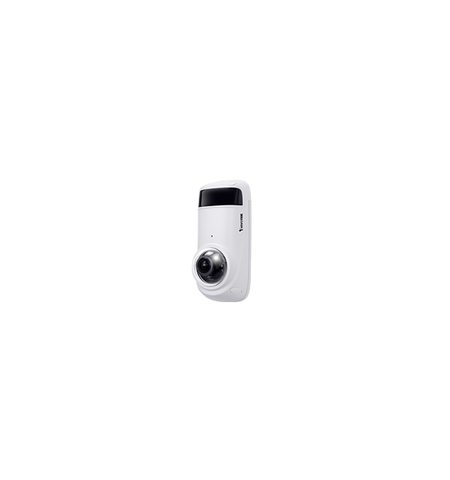

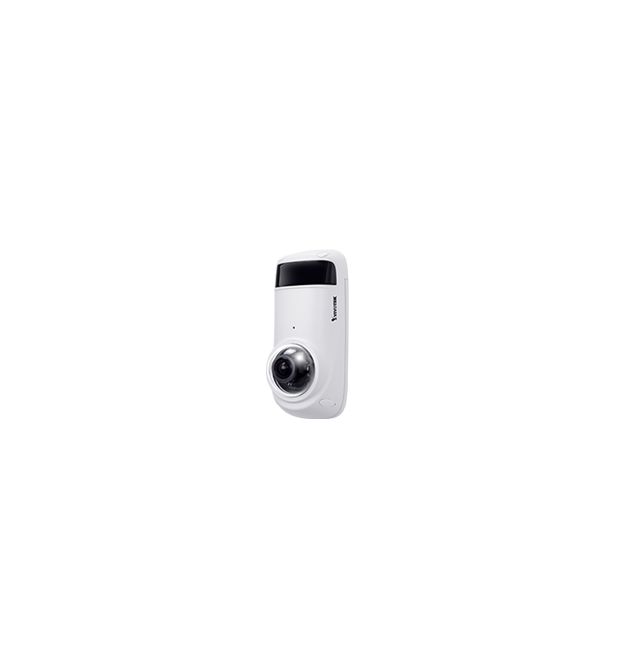

Cctv | Pos :: CCTV Cameras :: VIVOTEK 180 degree camera

High-Quality Surveillance

Along with offering amazing 180ø HFOV coverage, CC9381-HV offers up to 20 fps at 5-Megapixel resolution (30 fps at 5MP with WDR Off). This Panoramic Network Camera also incorporates other value-added features. In order to combat high contrast lighting environments, WDR Pro is included and also has built-in 15M panoramic IR illuminators, ensuring 24/7 surveillance coverage.

Maximize Video Quality with Ultra-Low Bandwidth

Combining both H.265 and VIVOTEK Smart Stream III, the CC9381-HV can reduce bandwidth and storage consumption more than 90%* compared to traditional H.264 without smart streaming.

* depending on scene

System Information

Model: CC9381-HV

CPU: Multimedia SoC (System-on-Chip)

Flash: 256 MB

RAM: 512 MB

Camera Features

Image Sensor: 1/2.7" Progressive CMOS

Max. Resolution: 2560x1920 (5MP)

Lens Type: Fixed-focal

Focal Length: f = 1.45 mm

Aperture: F2.2

Auto-iris: Fixed iris

Field of View: 180ø (Horizontal)
120ø (Vertical)
180ø (Diagonal)

Shutter Time: 1/5 sec. to 1/32,000 sec.

WDR Technology: WDR Pro

Day/Night: Yes

Removable IR-cut Filter: Yes

IR Illuminators: Built-in IR illuminators, effective up to 15 meters with Smart IR, IR LED*4

Minimum Illumination: 0.11 lux @ F2.2 (Color)
0.01 lux @ F2.2 (B/W)
0 lux with IR Illuminators on

Tilt Range: ñ25ø

Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)

Storage: Seamless Recording to MicroSD/SDHC/SDXC cardÿand recording to network-attached storage (NAS)

Video

Video Compression: H.265, H.264, MJPEG

Maximum Frame Rate: H.265: 20 fps/30 fps @ 2560x1920 (WDR Pro on/off)
H.264: 20 fps/25 fps @ 2560x1920 (WDR Pro on/off)
MJPEG: 20 fps/20 fps @ 2560x1920 (WDR Pro on/off)

Maximum Streams: 3 video streams (Up to 8 configurable profiles)

S/N Ratio: 62 dB

Dynamic Range: 120 dB

Video Streaming: Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings: General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Privacy mask; Scheduled profile settings

Audio

Audio Capability: One-way Audio

Audio Compression: G.711, G.726

Audio Interface: Built-in microphone

Effective Range: 5 meters

Network

Users: Live viewing for up to 10 clients

Security: Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management

Protocols: 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP

Interface: 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF: Profile G, S, T supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection: Five-window video motion detection

VADP Package: Trend Micro IoT Security (1-year free trial), VIVOCloud

Alarm and Event

Event Trigger: Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot

Event Action: Event notification via email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors: RJ-45 cable connector for 10/100Mpbs Network/PoE connection

LED Indicator: System power and status indicator

Power Input: IEEE 802.3af PoE Class 0

Power Consumption: Max. 9.12 W/5.37 W (IR on/off)

Dimensions: 159.9 x 71.92 x 60.2 mm (Dome to rear panel), 39.2 mm (Flat to rear panel)

Weight: 492 g

Certifications: EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B); Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252)
