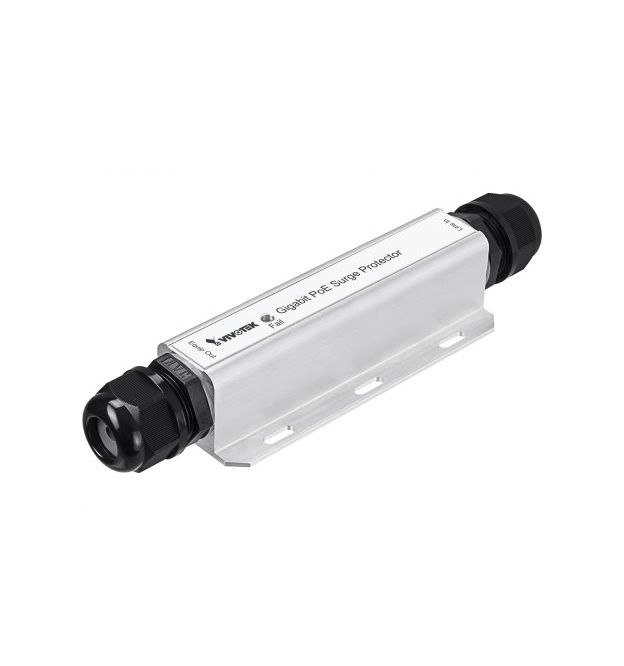

Vivotek AP-PSP-050 Outdoor PoE Surge Protector
Vivotek AP-PSP-050 Outdoor PoE Surge Protector
Vivotek AP-PSP-050 Specs
| Number of Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mb/s |
| Discharge Current | Maximum: 8 kA, 16 kV (8/20 us, 1 kA per Line) |
| DC Voltage | Maximum Operation: 60 VDC |
| DC Current | Maximum Operation: 1 A for 2 Pairs, 2 A for 4 Pairs, 95 W |
| Protection Level | Common Mode: 20 kV (10/700us) |
| Clamping Voltage | Line to GND: 600 V Line to Line: 20 V |
| Insertion Loss | At 10/100 MHz: 1 dB |
| Return Loss | At 10/100 MHz: -20 dB |
| Response Time | 5 ns |
| Connectors | 2 x PG16 (RJ45) |
| MTBF | 1,132,887 Hours |
| Waterproof Standard | IP67 |
| Certifications | EMC: CE, FCC, VCCI, C-Tick Safety: EN60950-1, IEC60950-1 Surge: ITU-T K.21, IEC-61643-21, IEC61000-4-5, TIA-968-A (FCC Part 68) |
| Operating Temperature | -40 to 185øF / -40 to 85øC |
| Storage Temperature | -40 to 185øF / -40 to 85øC |
| Operating Humidity | 5 to 95% (Non-Condensing) |
| Dimensions | 7.3 x 2.0 x 1.3" / 186.2 x 50 x 32 mm |
| Weight | 0.60 lb / 0.27 kg |
