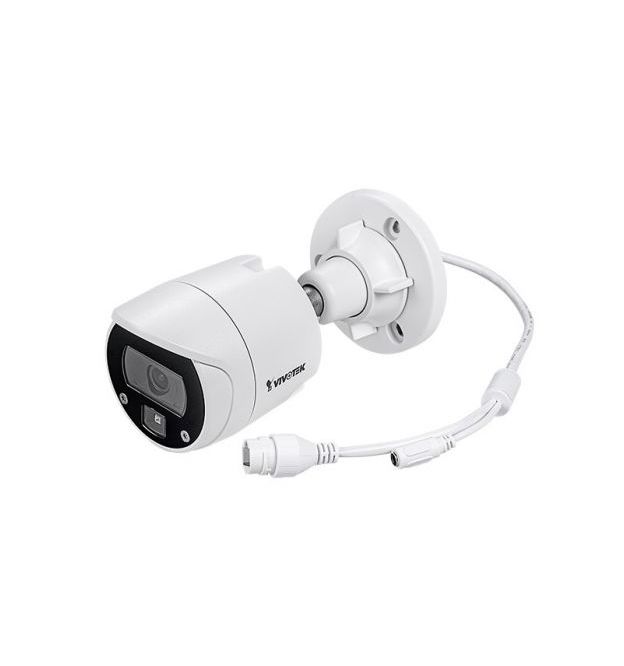

VIVOTEK Outdoor IK10 Mini Bullet; H.265; 2MP; 3.6mm; 30M IR; WDR Enhanced; Smart Motion
Vivotek IB9369 Specs
Camera
| Sensor | 2 MP 1/3.1" CMOS |
| Focal Length | 2.8mm |
| Maximum Aperture | f/2 |
| Zoom | Digital: 18x |
| Lens Field of View | Horizontal: 118ø Vertical: 65ø Diagonal: 140ø |
| IR Cut Filter | Mechanical |
| Day/Night | Yes |
| Minimum Illumination | Color: 0.08 Lux B&W: 0 Lux |
| Shutter Speed | 1/32,000 to 1/5 Seconds |
| Camera Angle Adjustment | Vertical: 0 to 90ø |
Video
| Streaming Resolution | 1920 x 1080 at 30 fps |
| Supported Video Compression | H.264, H.265, MJPEG |
| Multi-View Streaming | Yes, 2 Streams |
Networking
| Security | Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log |
| Supported Protocols | ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP |
System Integration
| Application Programming Interface (API) | ONVIF Profiles G, S & T |
| Analytics | Five-Window Video Motion Detection, People Detection, Time Filter |
| Event Trigger | Yes |
| Event Action | Recording, Notification, Alarm |
| Data Streaming | Yes |
System Requirements
| Windows OS Support | Windows 7, 8, 10 |
| Mac OS Support | macOS 10.12 |
Environmental
| Operating Temperature | -22 to 131øF / -30 to 55øC |
| Startup Temperature | -22 to 122øF / -30 to 50øC |
| Operating Humidity | 95% |
| IP Rating | IP66 |
| IK Rating | IK10 |
General
| Memory | 256 MB RAM / 256 MB Flash |
| Media/Memory Card Slot | Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum] |
| Pan/Tilt | None |
| I/O Connections | 1 x RJ45 |
| IR Range | 98.4' / 30ÿm |
| Video Management Software | VAST, Shepherd |
| Supported Languages | English French German Italian Japanese Portuguese Simplified Chinese Spanish Traditional Chinese |
| Internal Storage | None |
| External Storage Options | NAS |
| Power Source | DC, PoE 802.3af (15 W) |
| Power Consumption | DC: 5.1 W PoE: 6.5 W |
| Dimensions | : 3.6 x L: 7.1" / : 91.1 x L: 181.5ÿmm |
| Weight | 1.5ÿlb / 671ÿg |
Packaging Info
| Package Weight | 1.98 lb |
| Box Dimensions (LxWxH) | 9.5 x 5.8 x 5.4" |
