System Information

Model

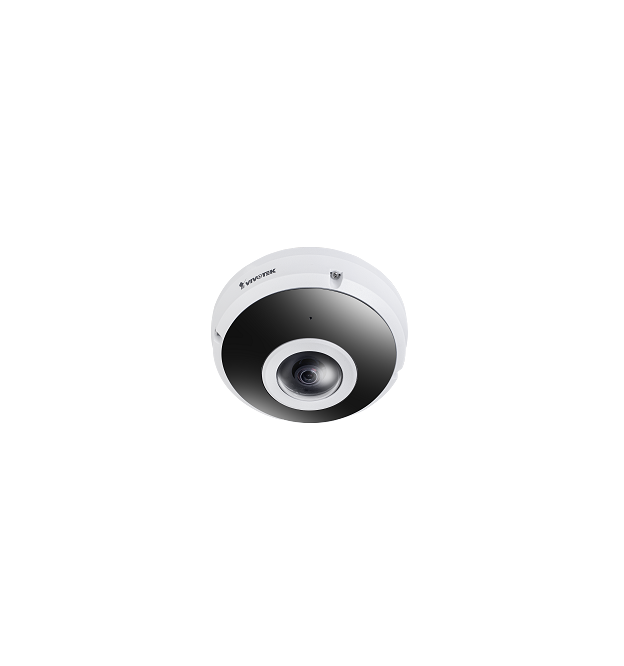

FE9382-EHV

CPU

Multimedia SoC (System-on-Chip)

Flash

128MB

RAM

512MB

Camera Features

Image Sensor

1/1.8" Progressive CMOS in 3096x2094

Max. Resolution

1920x1920

Lens Type

Fixed-focal

Focal Length

f = 1.47 mm

Aperture

F2.2

Auto-iris

Fixed-iris

Field of View

180ø (Horizontal)
180ø (Vertical)
180ø (Diagonal)

Shutter Time

1/5 sec. to 1/32,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

IR Illuminators

Built-in IR illuminators, effective up to 20 meters, 850nm IR LED*6

Minimum Illumination

0.18 lux @ F2.2 (Color)
0.001 lux @ F2.2 (B/W)
0 lux with IR illumination on

Pan/Tilt/Zoom Functionalities

ePTZ: 12x digital zoom (12x on IE plug-in)

Storage

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

H.265 & H.264: 30 fps @ 1920x1920
MJPEG: 12 fps @ 1920x1920

Maximum Streams

4 simultaneous streams

S/N Ratio

42.3 dB

Dynamic Range

100 dB

Video Streaming

Adjustable resolution, quality and bit rate control, Smart Stream III

Image Settings

Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, scheduled profile settings, 3D noise reduction, defog, pixel calculator

Audio

Audio Capability

Two-way Audio (full duplex)

Audio Compression

G.711, G.726

Audio Interface

Built-in microphone
External microphone input
External line output

Effective Range

5 meters

Network

Users

Live viewing for up to 10 clients

Protocols

802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
* It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Five-window video motion detection

Alarm and Event

Event Trigger

Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy

Event Action

Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1

LED Indicator

System power and status indicator

Power Input

DC 12V
IEEE 802.3at PoE Class 4

Power Consumption

Max. 20 W

Dimensions

 160 x 51 mm

Weight

762 g

Casing

IP66, IK10

Certifications

CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50155

Operating Temperature

Starting Temperature: -25øC ~ 55øC (-13øF ~ 131øF)
Working Temperature: -40øC ~ 55øC (-40øF ~ 131øF)

Humidity

90%

Warranty

36 months

System Requirements

Operating System

Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above
QuickTime: 7 or above

Included Accessories

Packing Contents

Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack, I/O cable, mounting bracket
