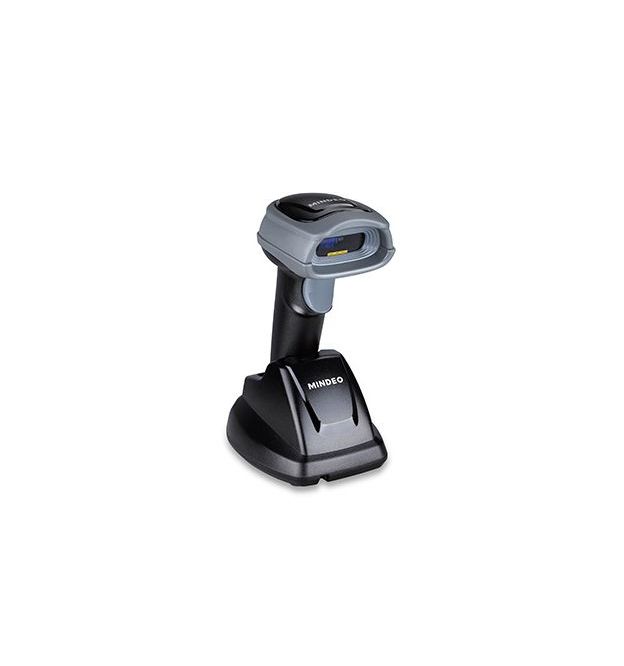

Mindeo CS2190 Cordless Laser Barcode Scanner Including Stand
Mindeo CS2190 Cordless Laser Barcode Scanner Including Stand
| SPECIFICATIONS | |
| Brand | Mindeo |
| Series | Scanners |
| Model | CS2190 |
| Communication Characteristics | |
| Working Range | 100 meters (open air) |
| Radio Link | 430.0 - 431.9 MHz, 433.3 - 434.7 MHz with adaptive frquency hopping |
| Mechanical Characteristics | |
| Dimensions (LxWžD) | Handheld unit: 90.2 mm ž 70 mm ž 180 mm; Cradle: 118 mm ž 89.5 mm ž 74 mm |
| Weight | Handheld unit: 207 g; Cradle: 140 g (without cable) |
| Indicator | Handheld unit: LED, beeper, vibration; Cradle: LED |
| Programming Method | Manual (reading special barcode) |
| Firmware Upgrade | Using Flash Utility software, while a cradle is required. |
| Interface | USB Keyboard, USB Virtual COM, RS232, PS/2 Keyboard |
| Electrical Characteristics | |
| Input Voltage | DC 5 ñ 0.25 V |
| Current | Handheld unit: 4 mA (standby), 150 mA (working) |
| Cradle: 60 mA (working), 500 mA (charging, maximum) | |
| Battery | 1400 mAh Lithium-ion battery |
| Charge Time | 4 Hours |
| Standby Time | 5 Days |
| Operating Time | 21 Hours (1 scan oer 5 seconds) |
| Performance Characteristics | |
| Light Source | 650 nm visible laser diode |
| Decoding Rate | 200 times per second |
| Scanning Angle | ñ60ø, ñ65ø, ñ42ø (skew, pitch, roll) |
| Print Contrast | 20 % minimum reflection difference |
| Minimum Resolution | 3 mil |
| Decoding Capability | UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants |
| Decoding Depth | 3 mil Code 39 (3 chars): 20 - 70 mm |
| 5 mil Code 39 (3 chars): 0 - 120 mm | |
| 10 mil Code 39 (3 chars): 0 - 280 mm | |
| 13 mil UPC-E (6 chars): 0 - 350 mm | |
| 20 mil Code 39 (3 chars): 25 - 480 mm | |
| 30 mil Code 39 (2 chars): 15 - 650 mm | |
| Environmental Characteristics | |
| Temperature | 0ø to 50øC, operating; -40ø to 60øC, storage |
| Humidity | 5% to 95% (non-condensing) |
| Safety | Laser safety: EN60825-1, Class 1 | EMC: EN55022, EN55024 |
| Electrical Safety: EN60950-1 | Sealing: IP51 | |
| Drop Resistance: Multiple 1.5 m (4.9 ft.) drops to concrete | |
| Warranty Information | |
| Warranty | 2 Year Warranty |
