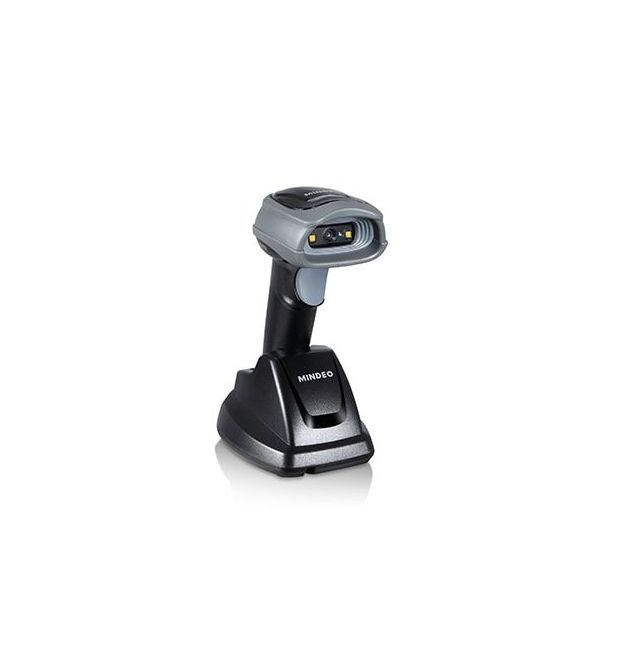

MINDEO CS2290 2D CORDLESS IMAGE SCANNER 100M WORKING RANGE 200/S DECODE SPEED IP51 STAND
MINDEO CS2290 2D CORDLESS IMAGE SCANNER 100M WORKING RANGE 200/S DECODE SPEED IP51 STAND
- Stylish and ergonomic design, small base saves installation space
- Read all common 1D/2D barcodes from paper labels and electronic screens
- Working range reaches up to 100 meters
- Support point-to-point and multi-point data transmission
- Support batch mode capability (30,000 UPC-A barcodes)
- Built-in rechargeable & replaceable battery, one full charge supports scanning for 46 hours or standby for 4.5 days
- Brand-new, easy wireless communication setting method guarantees convenient operation
Specifications | |
| Product Code | CS2290 |
| Communication Characteristics | |
| Working Range | 100 meters (open air) |
| Radio Link | 430.0 ~ 431.9 MHz, 433.3 ~ 434.7 MHz with adaptive frequency hopping |
| Mechanical Characteristics | |
| Dimensions (L x W x D) | Handheld unit: 90.2 mm x 70 mm x 180 mm, Cradle: 118 mm x 89.5 mm x 74 mm |
| Weight | Handheld unit: 210 g, Cradle: 140 g (without cable) |
| Indicator | Handheld unit: LED, beeper, vibration, Cradle: LED |
| Interface | USB Keyboard, USB Virtual COM, RS232, PS/2 Keyboard |
| Electrical Characteristics | |
| Input Voltage | DC 5 ñ 0.25 V |
| Current | Handheld unit: 20 mA (standby), 350 mA (working) |
| Cradle: 60 mA (working), 500 mA (charging, maximum) | |
| Battery | 2600 mAh Lithium-ion battery |
| Charge Time | 6 hours |
| Standby Time | 6.5 days |
| Operating Time | 70 hours (1 scan per 5 seconds) |
| Performance Characteristics | |
| Image Size | 1280 x 800 pixels |
| Field of View | Horizontal: 42ø, vertical: 26.5ø |
| Scanning Angle | ñ70ø, ñ75ø, 360ø (Skew, Pitch, Roll) |
| Print Contrast | 20% minimum reflectance difference |
| Decoding Capability | 1D: UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII |
| Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128 | |
| UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance | |
| GS1 DataBar (formerly RSS) variants | |
| 2D: PDF417, MicroPDF417, QR code, DataMatrix, Han Xin code, Aztec Code | |
| Minimum Resolution | HD: 1D (Code 39): 3 mil, 2D (QR): 5 mil |
| SR: 1D (Code 39): 4 mil, 2D (PDF417): 6.7 mil | |
