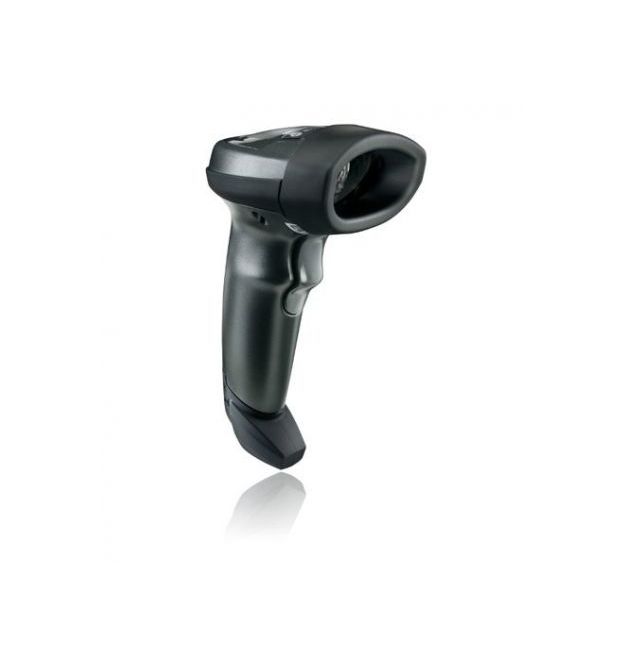

Zebra LI2208 Handheld Bar Code Reader 1D Linear Black LI2208-SR7U2100SGW

A champ on traditional and mobile 1d barcodes
Many customers have laser technology that cannot read mobile barcodes. With the li2208, customers can begin reading mobile and electronic barcodes right out of the box, without sacrificing scanning performance. A patented optical design achieves industry leading working range, and since bar codes can be captured at extreme angles, workers spend less time maneuvering the scanner for increased productivity.

Leverages the wildly successful ls2208
The ls2208 is zebra?s most successful scanner of all time with millions of customers of all sizes choosing the scanner for its performance, excellent reliability and unparalleled ergonomic design. With the li2208, your customers will enjoy the same ergonomic comfort and durability of the ls2208 (including the patented single circuit board design), while also benefiting from best-in-class linear technology.

Superior out-of-the-box experience
Setting up a new scanner can be time consuming and frustrating. The li2208's smart auto-host detect cables make deployment easier by automatically detecting the attached interface (usb, rs232, rs485 or keyboard wedge), eliminating the need to scan multiple parameter barcodes. More than 90 international keyboards are supported and the scanner is compatible with 123scan2 and sms.

International keyboard support
Support for over 90 international keyboards enables easy deployment anywhere in the world

Withstands 100+ consecutive drops to concrete and 1,000 consecutive 1.64 ft./ 0.5 m tumbles
Ensures reliable operation despite the inevitable everyday drops to help maximize uptime

Flexible modes ? handheld and presentation
Gooseneck intellistand enables presentation scanning and automatic switching between hands- free and handheld operation

Built for all day everyday use
A patented single circuit board improves reliability by eliminating connectors and ribbon cables, which are the most common points of failure. You can drop it and use it in dusty and damp environments ? and still expect reliable operation.

?˜Product Code: LI2208-SR7U2100SGW
?˜Description: Zebra LI2208 Handheld 1D Linear Imager USB

?˜Skew Tolerance: Ï45›
?˜Pitch Tolerance: Ï45›
?˜Roll Tolerance: Ï45›
?˜Scan Pattern:˜Single bright aiming line
?˜Scan Angle:˜Horizontal 35›
?˜Scan Speed:˜547 scans per second
?˜Motion Tolerance:˜25 in./ 63.5 cm per second
?˜Light Source:˜LED Class 1 device 617mm (amber)
?˜Min. Print Contrast:˜15% MRD

Voltage and Current˜
?˜5VDC Ï 10%
<165 mA scanning
<40 mA standby
<2.5 mA USB suspend
<4.0 mA low power mode (when enabled, RS232 and Keyboard Wedge only)

?˜Power Source:˜Host power or external power supply
?˜Color:˜Twilight Black; Nova White
?˜Supported host interfaces:˜USB, RS232, Keyboard Wedge and IBM RS485
?˜Keyboard Support:˜Supports over 90 international keyboards

˜
