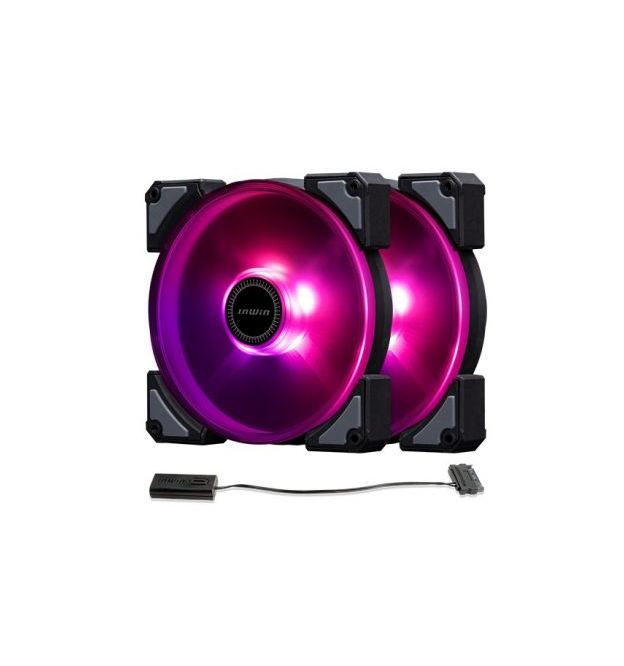

120mm Inwin Crown x2
120mm High Static Pressure Fan
Turbine Designed, High Static Pressure Fan
The CROWN AC120 fan features 9 blades that is molded with the inner frame, which effectively pushes the air to the center of the fan to create a turbine effect for higher pressure.
Addressable RGB Lighting Effect
Six centered LEDs are controlled by independent IC chips to present a totally customizable addressable RGB lighting effect. This also develops a variety of mixed color experiences.
Modular Connector Design
The CROWN AC120 inherits the modular cable design. This simplifies cable management by speeding up the installation process
No Controller Required
Connect the included addressable cable to the motherboard?s addressable header. The CROWN AC120?s radiant lighting effect can be beautifully and easily demonstrated with a compatible motherboard software.
* The included Addressable RGB Modular Controller can help you light up the CRWON AC120 fan without an addressable RGB motherboard. The lighting effects will function independently though.
Shockproof rubber stands effectively reduces vibrations.
The turbine blade design is molded to the inner frame to produce higher pressure.
Specifications
| Product Name | CROWN AC120 | |
|---|---|---|
| Part Number | Single Pack | AC120FAN-1PK |
| Twin Pack | AC120FAN-2PK | |
| Fan Size | 120 x 120 x 25mm | |
| Material | PBT, PC | |
| Rated Voltage | DC 12V | |
| Rated Power | 2.16W | |
| Rated Current | 0.18A | |
| ADD RGB Rated Voltage | DC 5V | |
| ADD RGB Rated Power | 1.5W | |
| ADD RGB Rated Current | 0.3A | |
| Speed Mode (PWM) / Noise Level | PWM 500~1600 R.P.M / 14.7~ 28.3dB(A) | |
| Air Flow | 53.08 CFM | |
| Air Pressure | 1.87mm/ H2O | |
| LED | Addressable RGB | |
| Fan Connector | 6-Pin Modular | |
| Noise Level | 28.3 dB(A) Max. | |
| Life expectation | 60,000 hrs/ 40? | |
| Net Weight | 141g | |
| Package Dimension (H x W x L) | Single Pack | 195mm x 140mm x 33mm |
| Twin Pack | 195mm x 140mm x 65mm | |
| Warranty | 2 years | |
| * Specifications may vary based on different regions. | ||
