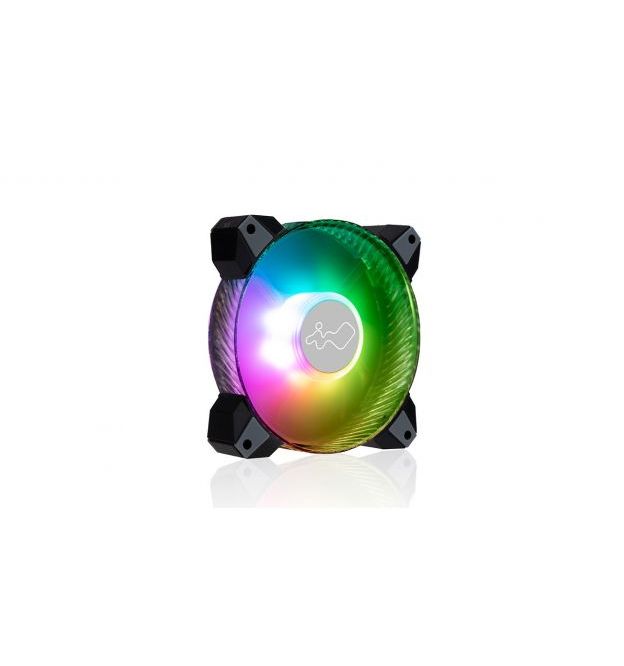

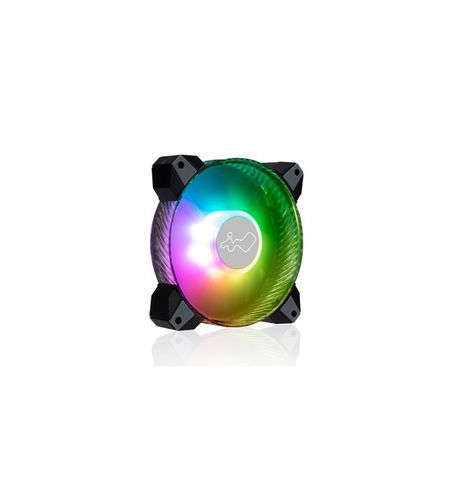

Inwin ASN120 Saturn ARGB with high airflow
Modular Connector Design
Our patented modular connector design daisy-chains the fans together, making cable management quick, easy, and clean.
Patent No.?US 10, 184, 478
Gorgeous ARGB Lighting Effect
The ARGB feature complements other ARGB components and can be synced together with motherboard software via 3-pin, 5V header.
Witness the Stripe-Hype!
The rigid stripes found along the transparent frame of the ASN120 showcases the beauty of their architecture and provides a unique perspective when the lights bleed through.
Shockproof Rubber Stands
Operating vibrations and noises are reduced to an absolute minimum through the shockproof rubber stands.
ARGB One-Click Controller PLUS (ARGB + Fan Controller)
Thanks to the provided ARGB One-Click Controller PLUS, you can now sync even more ARGB enabled items. Also, you can connect the fan?s power to the controller too.
Note: You can use the motherboard software and the controller together if desired. The controller only come with the 3-pack.
Saturn Quantity Included
Cable Information
Specifications
| Product Name | Saturn ASN120 | ||
|---|---|---|---|
| Quantity Included | Single Pack | Triple Pack | |
| Model Number | IW-FN-ASN120-1PK | IW-FN-ASN120-3PK | |
| Fan Size | 120 x 120 x 25mm | ||
| Materials | PC, PBT | ||
| Rated Voltage | DC 12V | ||
| Rated Power | 4.32W | ||
| Rated Current | 0.36A | ||
| ADD RGB Rated Voltage | 5V | ||
| ADD RGB Rated Power | 1.5W | ||
| ADD RGB Rated Current | 0.30A (max.) | ||
| Speed Mode | PWM 500~1800 RPM | ||
| Air Flow | 77.17 CFM | ||
| Air Pressure | 3.12mm/ H2O | ||
| LED | Addressable RGB | ||
| Connector (Fan to Fan) | 6-pin Modular | ||
| Connector to M/B | 4 Pin (PWM, 12V), 3 Pin (ARGB, 5V) | ||
| Noise Level | 35 dB(A) | ||
| Bearing Type | Long Lifespan Sleeve Bearing | ||
| Gross Weight | 190g | 554g | |
| Package Dimensions (L x W x H) | 125 x 185 x 30mm | 125 x 185 x 82mm | |
| Warranty | 2 Years | ||
| * Specifications may vary based on different regions. * InWin products comply with RoHS regulation. | |||
