InWin INW-103-BLACK 103 Tempered Glass Black Steel ATX Mid Tower Desktop Chassis
Sharp Exterior Pinstripe Design
The 103 produces gamer vibes with its pinstripe design and sharp exterior. It?s an opportunity to feel your own style and build a stunning rig.
Address Your Lighting
The InWin logo radiates with addressable RGB lighting effects. It?s controlled and synced with your motherboard software to customize your PC.
* If your motherboard doesn't have a 3-pin ADD header, please use the provided RGB controller to connect to the InWin logo ADD RGB module and your PSU to set the default LEDs.
Accelerated Tool-less Glass Design
The 103?sÿtempered glass side panel can be easily removed by pulling the tabs and lifting up. The tinted glass with pinstripe design enhances your system?s visual appearance, and allows users to admire their builds inside and out.
Stay Cool!
The 103 supports up to 6 fans and can accommodate radiators at the rear, side and bottom. This extremely flexible interior structure allows the users to have optimal cooling performance.
It?s the Little Things that Matter
To provide the most user-friendly environment and the highest quality for our users, we?ve included the following:
Two 2.5? SSD mounts in the back of motherboard tray
Supports 3.5?/2.5? HDD trays
Extra graphics cards support holder
Quick removal dust filter
Tactical Thermal Treatment
The top PSU chamber makes the system cleaner and creates an ideal area for better airflow without interfering with the motherboard and graphics card.
Specifications
| Model | 103 |
|---|---|
| Part Number | IW-103-Black / IW-103-White |
| Color | Black, White |
| Case Type | Mid Tower |
| Materials | SECC, ABS, PC, Tempered Glass |
| M/B Compatibility | 12" x 10.5" ATX, Micro-ATX, Mini-ITX |
| Expansion Slots | PCI-E x 7 |
| Maximum Compatibility | VGA Card Length: 421mm (Maximum) VGA Card Length: 305mm (With Side Radiator) CPU Heatsink Height: 160mm |
| Front Ports | 2 x USB 3.0 HD Audio |
| Internal Drive Bays | 2 x 3.5" 2 x 2.5" (Max. up to 4 bays) |
| Thermal Solution Compatibility | 1 x 120mm Rear Fan / 120 mm Radiator 2 x 120mm Side Fan / 240mm Radiator 3 x 120mm Bottom Fan / 360mm Radiator |
| Power Supply Compatibility | PSII: ATX12V - Length up to 200mm |

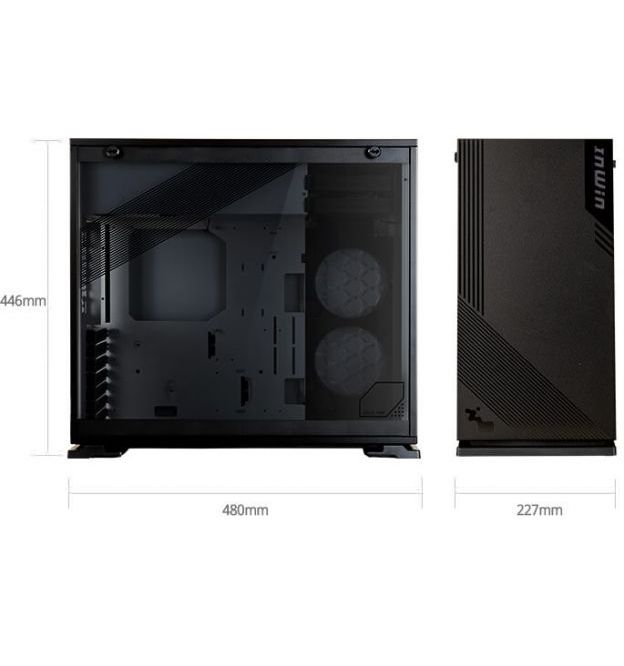

| Product Dimensions (H x W x D) | 425 x 210 x 473 mm 16.7" x 8.3" x 18.6" |
| Product Dimensions (H x W x D) with screw & handle height | 446 x 227 x 480 mm 17.6" x 8.9" x 18.9" |
| Package Dimensions (H x W x D) | 506 x 282 x 532mm 19.9" x 11.1" x 20.9" |
| Net Weight | 7.31kg / 16.1lb |
| Gross Weight | 8.47kg / 18.6lb |
| * InWin products comply with RoHS regulation. * Specifications may vary based on different regions. | |
