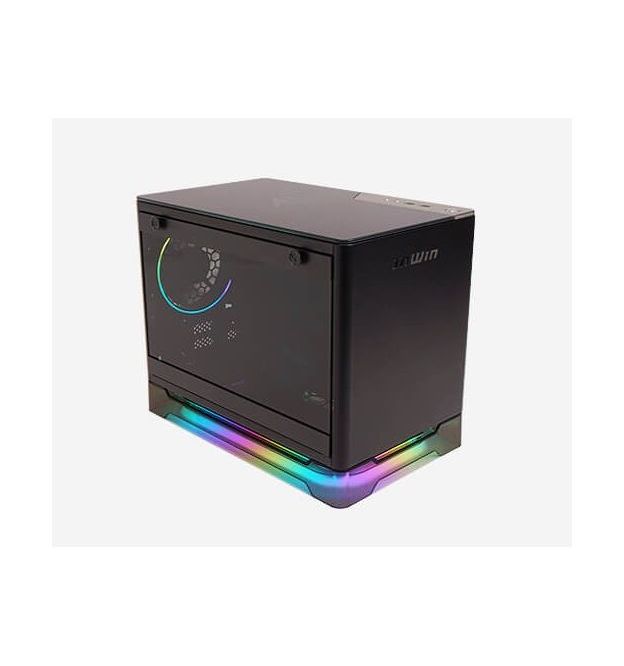

Inwin A1 Prime blK + 750w mitx
Specifications | |
| Product Code | CH-iA1PK 750 |
| Model | A1 Prime |
| Product number | IW-A1PRIME-BLACK |
| colour | Black |
| Chassis type | Mini case |
| Material | Tempered glass, SECC galvanized steel sheet, aluminum alloy, acrylic |
| Motherboard compatible | Mini-ITX |
| Interface card expansion slot | 2 x PCI-E |
| Highest compatibility | Support high specification graphics card length: 320mm |
| Support high specification graphics card thickness: 55mm | |
| Support CPU cooler height: 160mm | |
| Front output/in port | 2 x USB 3.0 |
| HD Audio | |
| Hidden drive bay | 2 x 2.5" |
| Compatible cooling system | Fan: |
| Rear: Support 1 x 120mm (pre-installed) | |
| Under: Support 2 x 120 mm | |
| Side: Support 1 x 120 mm (pre-installed) | |
| Water-cooled radiator: | |
| Rear: 1 x 120 mm | |
| * The number of pre-installed fans of this product is slightly different depending on the sales area | |
| Power supply compatible | PSII: Intel ATX12V V2.52 |
| InWin 750W 80 PLUS Gold PSU (pre-installed) | |
| Product size (height x width x length) | 343 x 210 x 231 mm |
| Product size (height x width x length) | 357 x 224 x 273 mm |
| including screw & handle height Packing size (height x width x length) | 414 x 295 x 344 mm |
| net weight | 6.14 kg |
| Gross weight | 7.2 kg |
| Connector | 20 4 Pin Motherboard : 1 |
| 8-Pin CPU : 1 | |
| 8 (6 2) Pin PCI-E : 2 | |
| SATA : 3 | |
