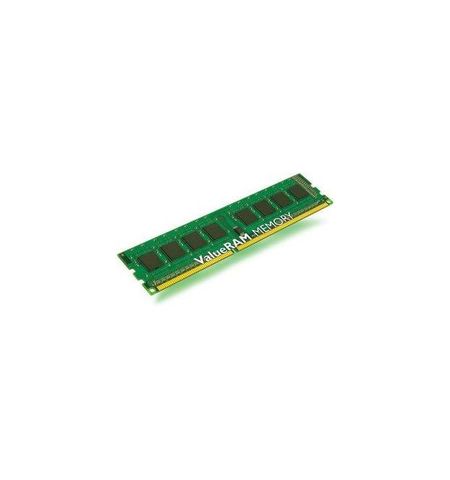

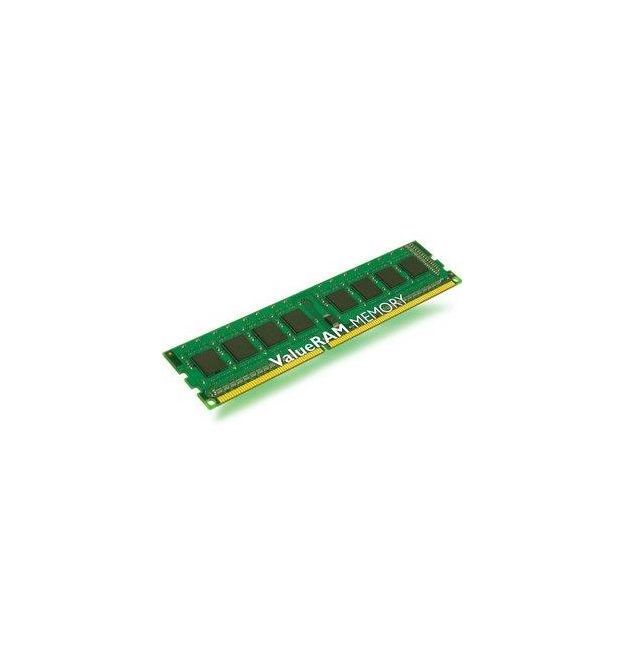

Kingston 2Gb Ddr3-1600 ValueRam 2Gb | ME-K2V16C11

CODE: ME-K2V16C11

R 470

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Kingston ValueRam KVR16N11S6/2 , 2Gb ddr3-1600 , CL11 , 1.5v - 240pin - lifetime warranty

Overview:

This document describes ValueRAM's 256M x 64-bit (2GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 1Rx16, memory module, based on four 256M x 16-bit FBGA compo-nents. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold contact fingers

Features:

JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
VDDQ = 1.5V (1.425V ~ 1.575V)
800MHz fCK for 1600Mb/sec/pin
8 independent internal bank
Programmable CAS Latency: 11, 10, 9, 8, 7, 6
Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
8-bit pre-fetch
Burst Length: 8 (Interleave without any limit, sequential with starting address ?000? only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
Bi-directional Differential Data Strobe
Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ñ 1%)
On Die Termination using ODT pin
Average Refresh Period 7.8us at lower than TCASE 85øC, 3.9us at 85øC < TCASE < 95øC
Asynchronous Reset
PCB : Height 1.180? (30.00mm), single sided component
