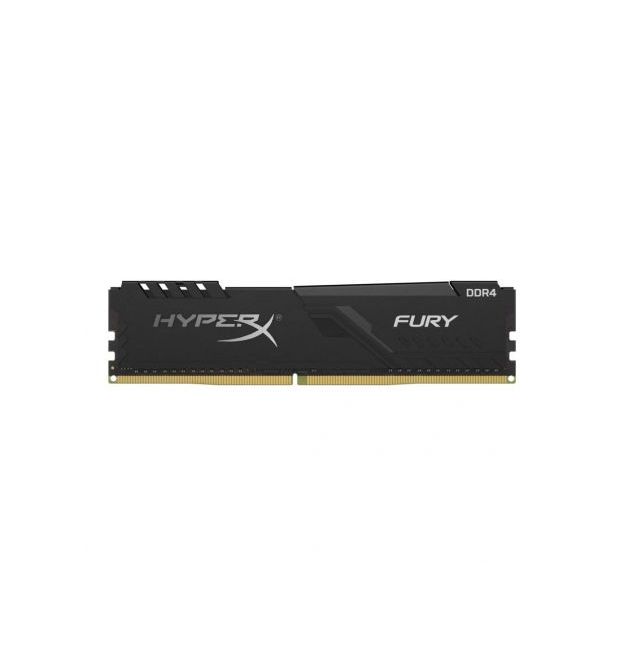

Kingston DDR4-3200 hyper-x Fury with asymmetrical heatsink 4Gb

CODE: HX432C16FB3/4

R 1000

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Overview:

HyperX HX432C16FB3/4 is a 512M x 64-bit (4GB) DDR4-3200 CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 512M x 8-bit FBGA components per module.ÿ Each module kit supports Intel© Extreme Memory Profiles (Intel© XMP) 2.0.ÿ Each module has been tested to run at DDR4-3200 at a low latency timing of 16-18-18 at 1.35V.ÿ The SPDs are programmed to JEDEC standard latency DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.

Features:

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
On-Die termination (ODT)
16 internal banks; 4 groups of 4 banks each
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Height 1.3425? (34.1mm), w/heatsink

Specifications
Product Code	HX432C16FB3/4
CL(IDD)	17 cycles
Row Cycle Time (tRCmin)	45.75ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)	260ns(min.)
Row Active Time (tRASmin)	32ns(min.)
UL Rating	94 V - 0
