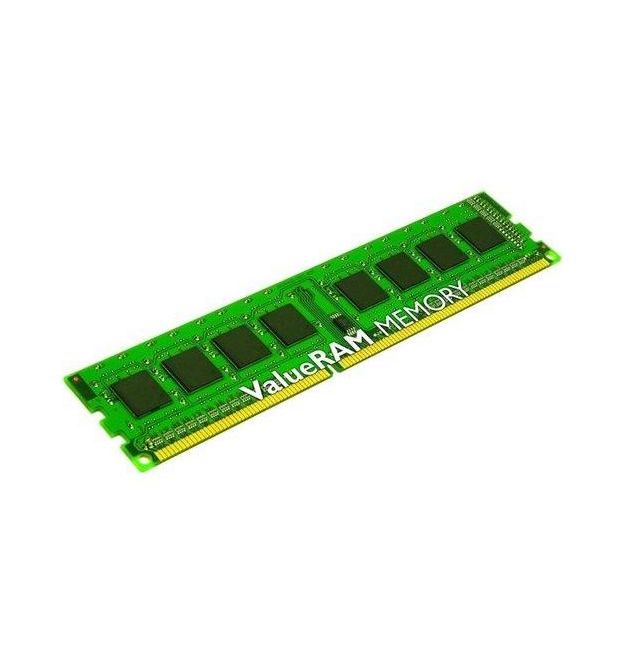

Kingston ValueRAM 8GB DDR3 1600MHz Module Memory Module KVR16N11/8
Description
Kingston ValueRam 8.0GB DDR3 1600MHZ Non ECC Desktop Memory Module(PC3-12800 240-Pin 2 Rank DIMM)CL11, Retail Box , Limited Lifetime Warranty
Product Overview
This document describes ValueRAM's 1G x 64-bit (8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold contact fingers.
Product Overview
This document describes ValueRAM's 1G x 64-bit (8GB) DDR3-1600 CL11 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 512M x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1600 timing of 11-11-11 at 1.5V. This 240-pin DIMM uses gold contact fingers.
˜
Features
? JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
? VDDQ = 1.5V (1.425V ~ 1.575V)
? 800MHz fCK for 1600Mb/sec/pin
? 8 independent internal bank
? Programmable CAS Latency: 11, 10, 9, 8, 7, 6
? Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
? 8-bit pre-fetch
? Bi-directional Differential Data Strobe
? On Die Termination using ODT pin
? Average Refresh Period 7.8us at lower than TCASE 85›C, 3.9us at 85›C < TCASE < 95›C
? Asynchronous Reset
? PCB : Height 1.180? (30.00mm), double sided component
Specifications
?Stock Code: KVR16N11/8
?Type: DDR3
?Capacity: 8GB
?Speed: PC12800 1600MHz
?Size & Bit: 1G X 64
?Pins: 240pin
?ECC: No
?Registered: No
?Dual Rank
?CL 11, 1.5V
? JEDEC standard 1.5V (1.425V ~1.575V) Power Supply
? VDDQ = 1.5V (1.425V ~ 1.575V)
? 800MHz fCK for 1600Mb/sec/pin
? 8 independent internal bank
? Programmable CAS Latency: 11, 10, 9, 8, 7, 6
? Programmable Additive Latency: 0, CL - 2, or CL - 1 clock
? 8-bit pre-fetch
? Bi-directional Differential Data Strobe
? On Die Termination using ODT pin
? Average Refresh Period 7.8us at lower than TCASE 85›C, 3.9us at 85›C < TCASE < 95›C
? Asynchronous Reset
? PCB : Height 1.180? (30.00mm), double sided component
Specifications
?Stock Code: KVR16N11/8
?Type: DDR3
?Capacity: 8GB
?Speed: PC12800 1600MHz
?Size & Bit: 1G X 64
?Pins: 240pin
?ECC: No
?Registered: No
?Dual Rank
?CL 11, 1.5V
˜
