Kingston KVR16LS11/8 Overview

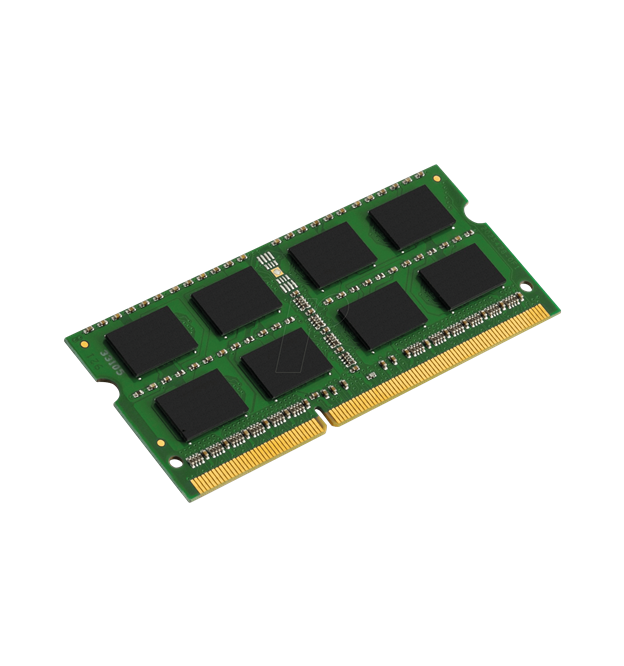

Upgrade the memory in your compatible system using the 8GB DDR3L 1600 MHz SODIMM Memory Module from HP. This single RAM module features an 8GB capacity, a clock speed of 1600 MHz, a bus speed of PC3-12800, and a 204-pin SODIMM form factor. It also operates using 1.35V, has a CAS Latency of 11-11-11, and is non-ECC. This RAM is protected by a limited 1-year warranty.

JEDEC standard 1.35V (1.28 ~ 1.45V) Power Supply

VDDQ = 1.35V (1.28 ~ 1.45V)

800 MHz fCK for 1600 Mb/sec/pin

8 Independent Internal Banks

Programmable CAS Latency: 11, 10, 9, 8, 7, 6

Programmable Additive Latency: 0, CL - 2, or CL - 1 clock

8-bit pre-fetch

Burst Length: 8 (Interleave without any limit, sequential with starting address "000" only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]

Bi-directional Differential Data Strobe

Internal (self) calibration: Internal self calibration through ZQ pin (RZQ : 240 ohm ñ 1%)

On Die Termination using ODT pin

Average Refresh Period 7.8 æs at lower than Tcase 185øF / 85øC, 3.9 æs at 85øC < Tcase ? 203øF / 95øC

Asynchronous Reset
