KVR32S22S6/4 d4 Nb 4Gb 3200

CODE: KVR32S22S6/4

R 555

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

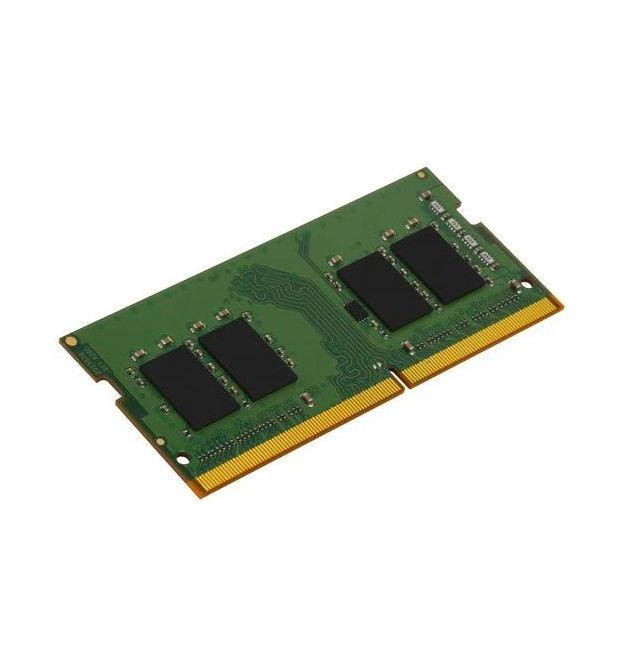

Kingston KVR32S22S6/4 Ddr4 Nb so-dimm 4Gb Valueram , 3200 (pc4-25600) , CL22 - 260pin , 1.2V - lifetime warranty - Retail pack

Overview:

This document describes ValueRAM's KVR32S22S6/4 as a 512M x 64-bit (4GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 512M x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin SODIMM uses gold contact fingers.

Features:

Power Supply: VDD = 1.2V Typical
VDDQ = 1.2V Typical
VPP = 2.5V Typical
VDDSPD = 2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Single-rank
On-board I2 serial presence-detect (SPD) EEPROM
8 internal banks; 2 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB:ÿ Height 1.18? (30.00mm)
RoHS Compliant and Halogen-Free
