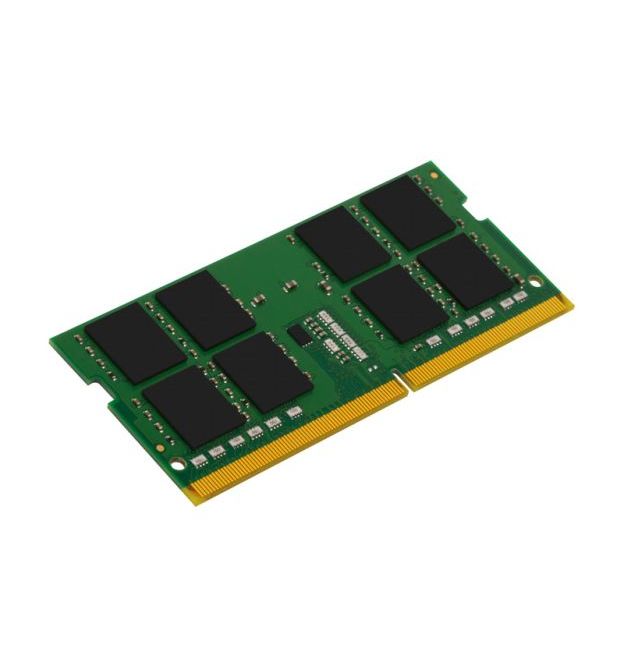

Kvr29S21D8/32 D4 Nb 32Gb 2933
Description
This document describes ValueRAM's KVR29S21D8/32 is a 4G x
64-bit (32GB) DDR4-2933 CL21 SDRAM (Synchronous DRAM),
2Rx8, non-ECC, memory module, based on sixteen 2G x 8-bit
FBGA components. The SPD is programmed to JEDEC standard
latency DDR4-2933 timing of 21-21-21 at 1.2V. This 260-pin DIMM
uses gold contact fingers. The electrical and mechanical
specifications are as follows:
Specifications
CL(IDD)
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
UL Rating
Operating Temperature
Storage Temperature
21 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
94 V - 0
0o C to +85o C
-55o C to +100o C
Features
? Power Supply: VDD = 1.2V Typical
? VDDQ = 1.2V Typical
? VPP = 2.5V Typical
? VDDSPD = 2.2V to 3.6V
? Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
? Low-power auto self refresh (LPASR)
? Data bus inversion (DBI) for data bus
? On-die VREFDQ generation and calibration
? Dual-rank
? On-board I2 serial presence-detect (SPD) EEPROM
? 16 internal banks; 4 groups of 4 banks each
? Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
? Selectable BC4 or BL8 on-the-fly (OTF)
? Fly-by topology
? Terminated control command and address bus
? PCB: Height 1.18? (30.00mm)
? RoHS Compliant and Halogen-Free
