Kingston Ddr4 Ecc , 2133 4Gb x2 kit | KVR21E15S8K2/8

CODE: KVR21E15S8K2/8

R 2100

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Overview:

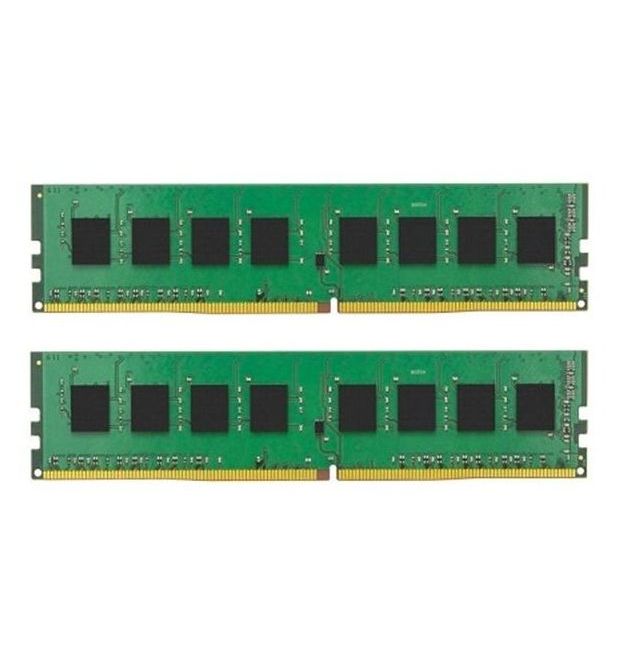

This document describes ValueRAM's KVR21E15S8K2/8 is a kit of two 512M x 72-bit (4GB) DDR4-2133 CL15 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module, based on nine 512M x 8-bit FBGA components. Total kit capacity is 8GB.ÿ The SPD is programmed to JEDEC standard latency DDR4-2133 timing of 15-15-15 at 1.2V. Each 288-pin DIMM uses gold
contact fingers.

Features:

Power Supply: VDD=1.2V Typical
VDDQ = 1.2V Typical
VPP - 2.5V Typical
VDDSPD=2.2V to 3.6V
Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
Low-power auto self refresh (LPASR)
Data bus inversion (DBI) for data bus
On-die VREFDQ generation and calibration
Dual-rank
On-board I2 serial presence-detect (SPD) EEPROM
Temperature sensor with integrated SPD
16 internal banks; 4 groups of 4 banks each
Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
Selectable BC4 or BL8 on-the-fly (OTF)
Fly-by topology
Terminated control command and address bus
PCB:ÿ Height 1.23? (31.25mm)
RoHS Compliant and Halogen-Free
