Kingston Ddr4 ecc-Registered Valueram , 2400 (pc4-19200) , 4Gb x 4 kit | VR24R17S8K4/16I

CODE: VR24R17S8K4/16I

R 7250

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Overview:

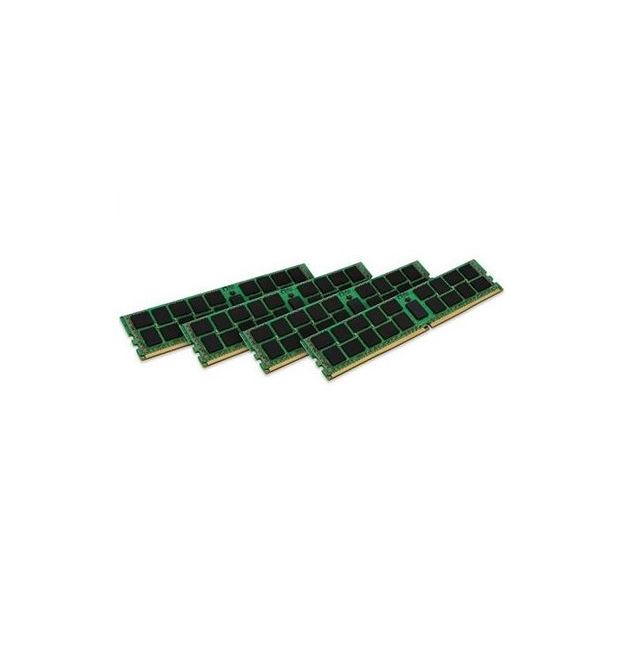

ValueRAM's KVR24R17S8K4/16I is a kit of four 512M x 72-bit(4GB) DDR4-2400 CL17 SDRAM (Synchronous DRAM)registered w/ parity, 1Rx8, ECC, Intel© Compatibility Tested,memory module, based on nine 512M x 8-bit FBGAÿcomponents per module. Total kit capacity is 16GB. The SPD is

programmed to JEDEC standard latency DDR4-2400 timing ofÿ17-17-17 at 1.2V. Each 288-pin DIMM uses gold contact fingers.ÿ

Features:

Power Supply: VDD=1.2V (1.14V to 1.26V)
VDDQ = 1.2V (1.14V to 1.26V)
VPP - 2.5V (2.375V to 2.75V)
VDDSPD=2.25V to 2.75V
Functionality and operations comply with the DDR4 SDRAM datasheet
16 internal banks
Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for
ÿthe banks in the same or different bank group accesses are available
Data transfer rates: PC4-2400, PC4-2133, PC4-1866, PC4-1600
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Supports ECC error correction and detection
On-Die Termination (ODT)
Temperature sensor with integrated SPD
This product is in compliance with the RoHS directive.
Per DRAM Addressability is supported
Internal Vref DQ level generation is available
Write CRC is supported at all speed grades
CA parity (Command/Address Parity) mode is supported

Specifications
Product Code	KVR24R17S8K4/16I
CL(IDD)	17 cycles
Row Cycle Time (tRCmin)	46.16ns(min.)
Refresh to Active/Refresh Command Time 1x mode (tRFCmin)	260ns(min.)
Row Active Time (tRASmin)	32.00ns(min.)
Maximum Operating Power	TBD W
UL Rating	94 V - 0
Operating Temperature	0oC to +85oC
Storage Temperature	-55oC to +100oC
