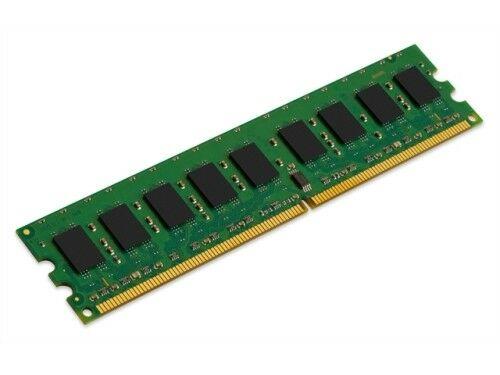

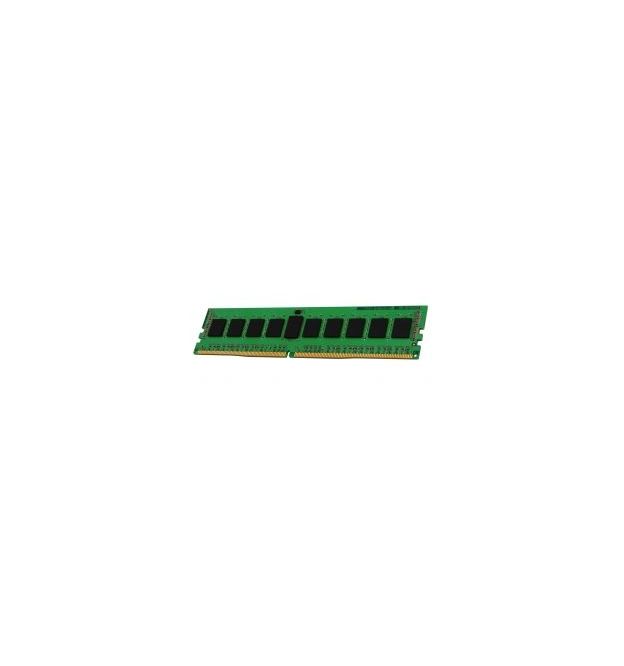

Kingston Technology 16GB 2933MHz DDR4 ECC CL21 DIMM 1Rx8 Micron E KSM29ES8/16ME
Description
Kingston's KSM29ES8/16ME is a 2G x 72-bit (16GB) DDR4-2933
CL21 SDRAM (Synchronous DRAM), 1Rx8, ECC, memory module,
based on nine 2G x 8-bit FBGA components. The SPD is
programmed to JEDEC standard latency DDR4-2933 timing of
21-21-21 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The
electrical and mechanical specifications are as follows:
Specifications
CL(IDD):
Row Cycle Time (tRCmin)
Refresh to Active/Refresh
Command Time (tRFCmin)
Row Active Time (tRASmin)
Maximum Operating Power
UL Rating
Operating Temperature
Storage Temperature
21 cycles
45.75ns(min.)
350ns(min.)
32ns(min.)
*
94 V - 0
0o C to +85o C
-55o C to +100o C
Features
? Power Supply: VDD = 1.2V Typical
? VDDQ = 1.2V Typical
? VPP = 2.5V Typical
? VDDSPD = 2.2V to 3.6V
? Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
? Low-power auto self refresh (LPASR)
? Data bus inversion (DBI) for data bus
? On-die VREFDQ generation and calibration
? Single-rank
? On-board I2 serial presence-detect (SPD) EEPROM
? Temperature sensor with integrated SPD
? 16 internal banks; 4 groups of 4 banks each
? Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
? Selectable BC4 or BL8 on-the-fly (OTF)
? Fly-by topology
? Terminated control command and address bus
? PCB: Height 1.23? (31.25mm)
? RoHS Compliant and Halogen-Free
