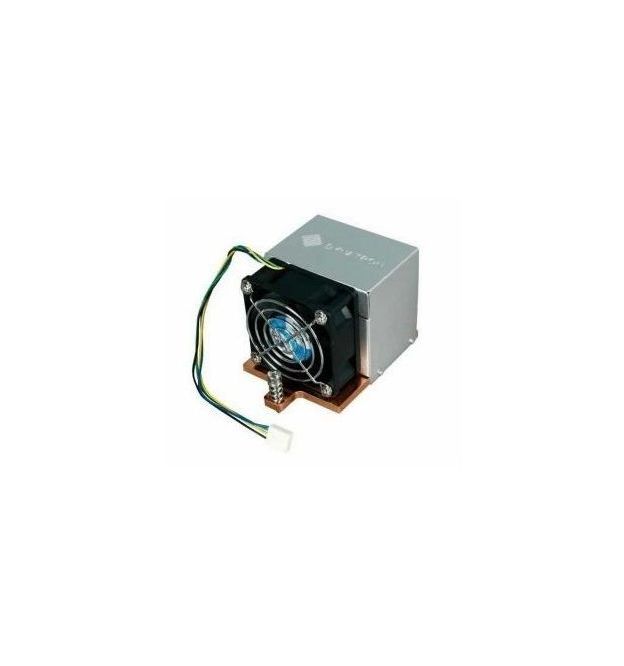

Dynatron A5 lga1944 cooler

CODE: A5

R 595

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Summary

Dynatron A5. Suitable for: Processor, Type: Cooler, Fan diameter: 6 cm. Material: Copper. Width: 6 cm, Depth: 6 cm, Height: 2.5 cm. Connector(s): 4-Pin PWM, Bearing technology: 2 x Ball

Description

- Recommend for AMD© G34 Processor, Socket 1944
- Active Side-Blow Cooler for 2U Server

Specifications
Product Code	CC-DA5
CPU Socket	G34
CPU Support	AMD Opteron 6000 Series up to 115 Watts
Solution	2U&Up Server
Overall Dimension	115.3 x 72.0 x 65.5 mm
Weight	680 ñ 5 g
Material	Copper Heatsink
Fan Dimension	60 x 60 x 25 mm
Speed	At Duty Cycle 0~20%: 1700 RPM
	At Duty Cycle 50%: 4000 RPM
	At Duty Cycle 100%: 8000 RPM
Bearing	2 Ball Bearing
Rated Voltage	12 V
Power	At Duty Cycle 0~20%: 0.6 W
	At Duty Cycle 50%: 1.28 W
	At Duty Cycle 100%: 7.2 W
Air Flow	At Duty Cycle 0~20%: 8.75 CFM
	At Duty Cycle 50%: 21.88 CFM
	At Duty Cycle 100%: 43.75 CFM
Noise Level	At Duty Cycle 0~20%: 16.85 dBA
	At Duty Cycle 50%: 35.95 dBA
	At Duty Cycle 100%: 51.0 dBA
Air Pressure	At Duty Cycle 0~20%: 0.708 mm-H2O
	At Duty Cycle 50%: 4.425 mm-H2O
	At Duty Cycle 100%: 17.701mm-H2O
Lead Wire Pin Out	Pin1-Black (-)
	Pin2-Yellow (+)
	Pin3-Green (Tachometer/Signal output)
	Pin4-Blue (PWM)
