4x4 4K HDMI Matrix Switch

CODE: VM0404HA

R 12165

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

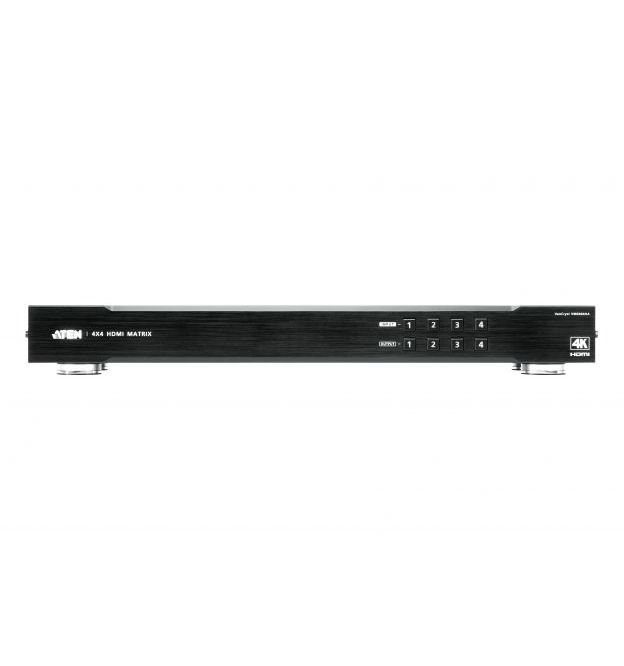

4x4 4K HDMI Matrix Switch

The ATEN VM0404HA 4x4 4K HDMI Matrix Switch supports 4K resolutions of UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). Ready for the future of highdefinition video switching, the VM0404HA is ideal for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores and more.

The VM0404HA matrix switch offers an easy and affordable way to route any of 4 HDMI video sources to any of 4 HDMI displays and can be operated through front-panel pushbuttons, IR remote and RS-232 control, ensuring optimum viewing and control of high-definition video.

Package Contents

1x VM0404HA 4x4 4K HDMI Matrix Switch
1x Power Adapter
1x IR Remote Control
1x IR Receiver
1x Mounting Kit
1x User Instructions

Video Input
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	5 m
Video Output
Interfaces	4 x HDMI Type A Female (Black)
Impedance	100 ?
Max. Distance	15 m
Video
Max. Data Rate	10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock	340 MHz
Compliance	HDMI (3D, 4K, Deep Color) HDCP 1.4 Compatible Consumer Electronics Control (CEC)
Max. Resolution	Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Max. Distance	Up to 15 m
EDID Settings	EDID Mode: Default / Port1 / Remix
Control
USB	1 x Micro USB F/W upgrade
RS-232	Connector: 1 x DB-9 Female (Black) Baud rate and protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
IR	1 x Mini Stereo Jack Female (Black)
Carton Lot	3 pcs
Physical Properties
Housing	Metal
Weight	2.02 kg ( 4.45 lb )
Dimensions (L x W x H)	43.72 x 16.29 x 4.40 cm (17.21 x 6.41 x 1.73 in.)
Connectors
Power	1 x DC Jack (Black)
Power Consumption	DC5V:9.62W:45BTU
Environmental
Operating Temperature	0-40øC
Storage Temperature	-20 - 60øC
Humidity	0 - 80% RH, Non-Condensing
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
