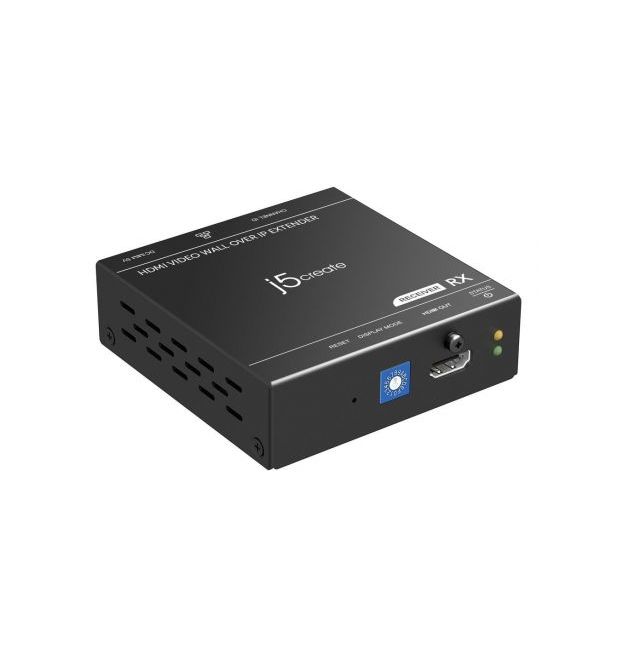

J5Create Jvae52-Rx Receiver

CODE: JVAE52-RX

R 1670

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

The HDMI^? Video Wall over IP Extender is cost effective and includes a transmitter and receiver kits. It can send high definition video and audio signals to an HDMI? or DVI enabled TV set, projector or LCD PC monitor display device with a receiver distance up to 100 meters with uncompressed signal and nearly zero latency. Users can extend other HDMI^? full HD sources from a Blu-Ray Disc^? player, DVD player, PC, notebook, gaming machine (e.g. SONY^? PlayStation^?, Nintendo Switch^?, etc.). It is HDCP compliant. The HDMI^? supports resolutions up to 1080p full HD and stereo digital audio.

Easily build a matrix display, no software or utilities required. The JVAE52 is specifically designed for a 10-position rotary switch for 10 TX-RX pairing and 16-position rotary switch for video display. Configuration supports 1x2, 2x2 or 3x3 matrix displays & different display modes. With a Gigabit Ethernet network switch (must support IGMP snooping), the JVAE52 can be point-to-point, point-to-multipoint, and multipoint-to-multipoint on the same IP LAN. Achieve multiple screens for all kinds of environments, such as, digital surveillance systems, digital signage, trade shows, college campuses, airports, shopping centers and conference centers.

Features

? Extend high definition video signal over Ethernet (100 Mbps/1 Gbps)
? Point-to-point up to 330 feet (100 meters) over cat5e/cat6 Ethernet cable, supports Ethernet topology (must support IGMP snooping). Specifically designed for a 10-position rotary switch for 10 TX-RX pairing
? Easily build a matrix display, no software or utilities required. 16-position rotary switch for video display configuration; supports 1x2, 2x2 or 3x3 matrix displays and different display modes
? A friendly additional GUI application for video wall remote settings and management
? Near zero signal latency and frame delay
? Each pairing process can be broadcasted up to 250 locations (TVs/Projectors)
? Supports 480i/576i/720i/1080i/480p/576p/720p/1080p and HDTV compatible
? Supports HDMI^? 1.3, HDCP 1.2 and DVI 1.0 compliant. Fully HDCP compliant to protect high-definition content transmission and ensure quality reception
? Supports many connection configurations:
- Direct connect from transmitter (TX) unit to receiver (Rx) unit - TX unit to network switch to RX unit
- TX unit to network switch (must support IGMP snooping) to multiple Rx units
- TX unit to network topology (must support IGMP snooping) to multiple Rx units
- Multiple TX units to network switch (must support IGMP snooping) to multiple Rx units
? A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications
? Compatible with PlayStation^© and Xbox^? game systems, Blu-ray^? players, set-top boxes and more
? VESA mounting bracket supported

Model Name	JVAE52
Transmitter (TX)	JVAE52-TX
Receiver (RX)	JVAE52-RX
HDMI^? Compliance	HDMI^?ÿv1.3
HDCP Compliance	HDCP 1.2
Video Impedance	100 ?
HDMI^? Audio Formats	Stereo digital audio
Video Resolution	Input Resolution Range: 640 x 480 to 1600 x 1200 and 1920 x 1080, 480p/i, 576p/i, 720p/i, 1080p/i @60/50Hz Output Resolution Range: 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 800, 1280 x 1024, 1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080 HDTV: HDTV 480p, 576p, 720p, 1080i, 1080p
Max. Video Data Rate	4.96 Gbps
Max. Ethernet Cable Distance	Point-to-point 330 feet (100 meters) over cat5e/6 cable. Supports Ethernet topology (must support IGMP snooping).
Ethernet Cable Requirements	Solid conductor, 24 AWG or better
ESD Protection	Human bodymodel: air- gap discharge: +-15kv contact discharge: +-8kv
OVP Protection	Voltage Protection Up to DC 20 Volts
Input /Output
HDMI^? Connector	Type-A 19-pin female input with lock x1
Ethernet Connector	RJ45 port (100/1000BASE-TX Ethernet) female 8P/8C with 2 LED indicators x1
Power Supply	DC jack 3.5 mm
10-Position Dip Rotary Switch	TX and RX each have a 10 group DIP switch for TX-RX pairing. Dip rotary switch color: black
16-Position Dip Rotary Switch	RX has a 16-position video display configuration, supports full screen, 1 x 2, 2 x 2 or 3 x 3 matrix Dip rotary switch color: blue
LED	LED x 2 Upper amber LED: product status indicator Bottom green LED: power ON indicator
Buttons	Recall to default button x1
Mechanical
Enclosure Type	Aluminum
Enclosure Color	Black
Enclosure Dimensions (W x D x H)	87.20 x 88.00 x 27.00 mm
Enclosure Dimensions with Bracket (W x D x H)	112.00 x 88.00 x 27.00 mm
Product Weight	120g
Product Weight with Bracket	156g
Power Supply	Input: 100 ? 240V AC, 50 ? 60 Hz, 0.4A Output: 5V DC, 2A, 10 watts
Power Consumption	Max. ? 4 watts
Operation Environment
Operation Temperature	+32 to +122 øF (0 to +50 øC)
Storage Temperature	-40 to +158 øF (-40 to +70 øC)
Relative Humidity	20% to 80% RH, non-condensing
Regulatory Compliance	CE, FCC Class A, RCM, UL, VCCI, BSMI Complies with the appropriate requirements of RoHS, WEEE
Product Limited Warranty	2 years
