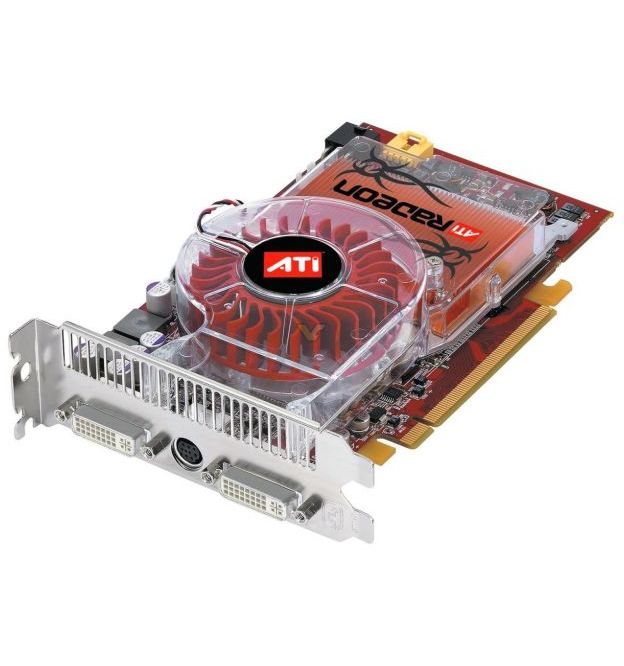

E:ABIT RX850XT 256mb ViVo

CODE: RX850XT256EDVIO

R 3690

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

ATI Radeon X850XT is a Graphics Processing Unit, built on 130 nm manufacturing process and targeted at desktop market. The card's graphics frequency is 540 MHz. Additionally, it has 16 pixel shaders, 16 color ROPs, and 16 texture units. The Radeon X850XT has 256 MB of GDDR3 memory, clocked at 590 MHz. It has a 256 bit wide memory bus, which gives 37.76 GB/s memory bandwidth. The GPU supports PCI Express 1.0 interface, and requires 2 motherboard slots. The maximum power consumption of this model is 67 Watt.

Manufacturer:	ATI
Model:	Radeon X850XT
Reference cardcscart_	Yes
Target market segment:	Desktop
Die name:	R480
Fabrication process:	130 nm
Transistors:	160 million
Bus interface:	PCI-E 1.0 x 16
Frequency
Graphics clock:	540 MHz
Memory specifications
Memory size:	256 MB
Memory type:	GDDR3
Memory clock:	590 MHz
Memory clock (effective):	1180 MHz
Memory interface width:	256-bit
Memory bandwidth:	37.76 GB/s
Cores / Texture
Color ROPs:	16
Pixel shader processors:	16
Vertex shader processors:	6
Texture units:	16
RAMDACs:	400 MHz
Electric characteristics
Maximum power draw:	67 W
Video features
Maximum VGA resolution:	2048 x 1536
Anti-Aliasing technologies:	6 x MSAA Temporal AA
Performance
Pixel fill rate:	8.64 Gigapixels/s
Texture fill rate:	8.64 Gigatexels/s
External connectors
Standard display connectors:	2 x DVI-I S-Video
Power connectors:	1 x 6-pin
Dimensions
Width:	Dual-Slot
Other features / Support
OpenGL support:	2.0
DirectX support:	9.0b
Pixel shader model:	2.0
Vertex shader model:	2.0
