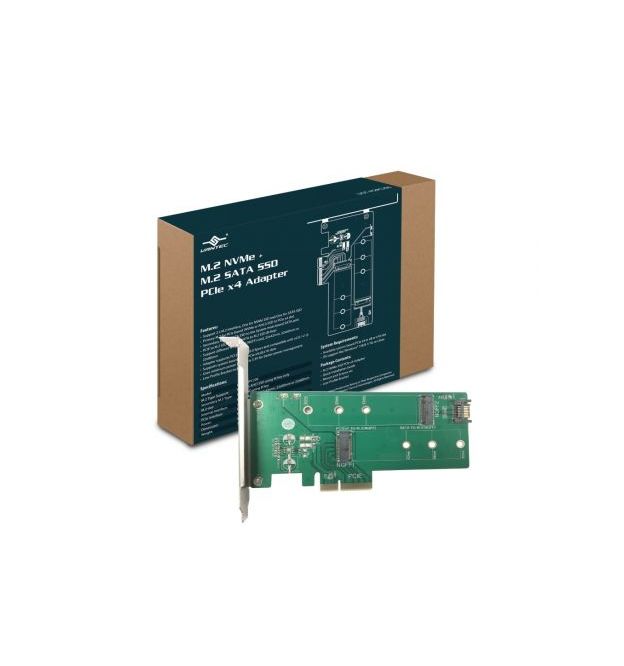

Vantec M.2 NVMe + M.2 SATA SSD PCIe X4 Adapter | VANTEC UGT-M2PC200 ADP
Vantec M.2 NVMe + M.2 SATA SSD PCIe X4 Adapter
The M.2 NVMe + M.2 SATA SSD PCIe x4 Adapter is a unique product with 2 very different M.2 Slot. It can offer the fastest boot or data access thru the NVMe SSD and at the same time provide very fast storage through the M.2 SATA SSD. It provides the link between PCIe 4 lanes of data path straight to the NVMe SSD resulting in super-fast data transfer and another M.2 interface for your M.2 SATA SSD. This adapter allows for flexible installation of an M.2 (NGFF) of different size like 42, 60, or 80mm in length with varying capacity. This M.2 adapter will give you the best performance possible for your system.
ÿ
- Support 2 x M.2 interface, One for NVMe SSD and One for SATA SSD
- Primary M.2 for PCIe based (NVMe or AHCI) SSD to PCIe x4 slot
- Secondary M.2 for SATA SSD to the System main board SATA port ÿ
- PCIE to M.2 SSD (M-Key), ÿSATA to M.2 SSD (B-Key)
- Support different length M.2 (NGFF) card, 22x42mm, 22x60mm or 22x80mm
- Adapter supports PCI Express v3.0 Specs and compatible with v2.0 / v1.0
- Supports system boards ÿwith PCIe x4,x8,x16 slots
- Uses minimum power from PCIe 3.3V for better power management
- Low Profile Bracket included
