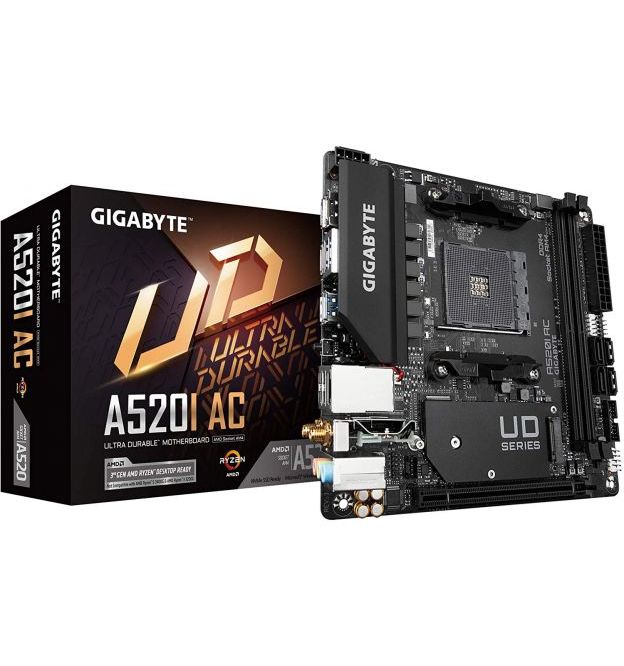

Gb A520I Ac + Wifi - Am4 Itx

CODE: A520I AC

R 2950

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP,ÿ RGB FUSION 2.0, Q-Flash Plus

Supports AMD Ryzen? 5000 Series/ 3rd Gen Ryzen? and 3rd Gen Ryzen? with Radeon? Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Direct 6 Phases Digital VRM Solution with 55A DrMOS
Ultra-FastÿNVMe PCIe 3.0 x4 M.2
Onboard Intel^©ÿDual Band 802.11ac WIFI & BT 4.2 with Ultra Durable? Antenna
GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
DisplayPort, Dual HDMI for for Multiple Display
RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design
1
Solid Pin Power Connector
2
DisplayPort
3
HDMI*2
4
Q-Flash Plus Button
5
GIGABYTE 8118 Gaming GbE LAN
6
Intel Dual Band 802.11ac & BT 4.2
7
High-End Audio Capacitors
8
Direct 6 Phases Digital VRM Solution with DrMOS
? 55A DrMOS
? Premium Choke and Capacitor
? 8 Layer PCB
9
Supports 3rd Gen AMD Ryzen? Processors
10
Dual Channel DDR4, 2 DIMMs
11
SATA3 Ports*4
12
RGB FUSION 2.0
? Addressable LED Header*1
? RGB LED Header*1
13
NVMe PCIe 3.0 x4 M.2 Connector
14
Smart Fan 5 + FAN STOP
? 3 Fan Connectors
? 5 Temperature Sensors
ÿ
1
Solid Pin Power Connector
2
DisplayPort
3
HDMI*2
4
Q-Flash Plus Button
5
GIGABYTE 8118 Gaming GbE LAN
6
Intel Dual Band 802.11ac & BT 4.2
7
High-End Audio Capacitors
8
Direct 6 Phases Digital VRM Solution with DrMOS
? 55A DrMOS
? Premium Choke and Capacitor
? 8 Layer PCB
9
Supports 3rd Gen AMD Ryzen? Processors
10
Dual Channel DDR4, 2 DIMMs
11
SATA3 Ports*4
12
RGB FUSION 2.0
? Addressable LED Header*1
? RGB LED Header*1
13
NVMe PCIe 3.0 x4 M.2 Connector
14
Smart Fan 5 + FAN STOP
? 3 Fan Connectors
? 5 Temperature Sensors
PERFORMANCE
Direct 6 Phases Digital VRM Solution with 55A DrMOS
A520I AC motherboard uses a Direct 6 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen? processors.

Digital PWM Controller delivers appropriate voltage to the CPU.
Direct 6 Phases DrMOS, each power phase connects directly to the CPU. With capability to handle up to 330 Amps current in total.
All-solid capacitors to improve Transient response and minimize oscillation.
8pin Solid Pin CPU Power Connector.
Faster and Better Coverage with Dual Band 802.11ac WIFI & BT4.2 Module
The onboard 802.11ac WIFI module from Intel^©ÿsupports the Dual Band and up to 433 Mbps transition speed, 3x faster than 802.11n and also support BLUETOOTH 4.2.

The brand new of Ultra Durable? Antenna supports Dual Band 802.11ax/ac 2.4GHz & 5GHz with 4dBi signal gained. It featured with better signal strength as compared to traditional antenna design and the magnetic base is the best design for signal strength direction and location.
Exclusive Realtek 8118 Gaming LAN
High Speed Gigabit LAN with Automatic Bandwidth Allocation
Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
Program On Top Gets Highest Priority

Real-Time Network Monitoring
NVMe PCIe Gen3 x4 M.2 Connector
GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system?s potential.
