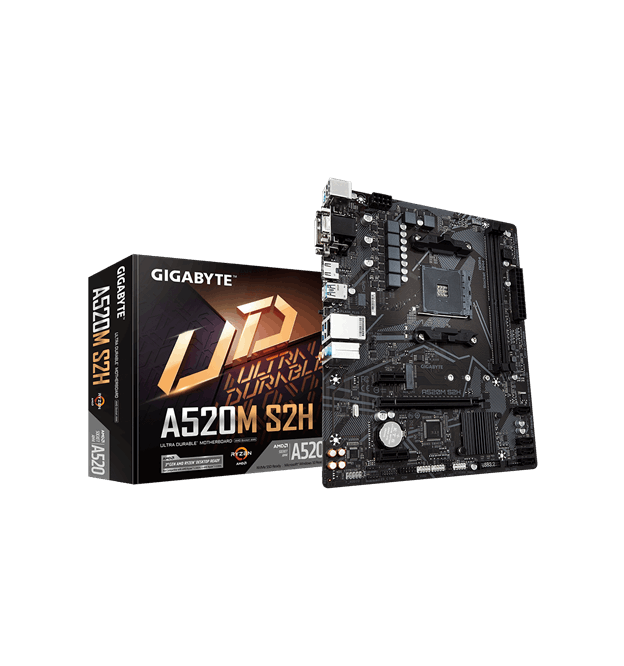

Gb A520M-S2H

CODE: A520M S2H

R 1700

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design

Supports AMD Ryzen? 5000 Series/ 3rd Gen Ryzen? and 3rd Gen Ryzen? with Radeon? Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
Ultra-FastÿNVMe PCIe 3.0 x4 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
HDMI, DVI-D, D-sub Ports for Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
Anti-Sulfur Resistors Design

Solid Pin Power Connector

D-Sub

DVI-D

HDMI

Q-Flash Plus Button

GIGABYTE 8118 Gaming GbE LAN

Audio Noise Guard

High-End Audio Capacitors

RGB FUSION 2.0

? Addressable LED Header*1
? RGB LED Header*1

All Solid Capacitors

4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

Supports 3rd Gen AMD Ryzen? Processors

Dual Channel DDR4, 2 DIMMs

NVMe PCIe 3.0x4 M.2 Slot

PCIe 3.0x16 Slot

Smart Fan 5 + FAN STOP

? 3 Fan Connectors
? 5 Temperature Sensors

4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

GIGABYTE UD series motherboards use a 4+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen? CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

Benefits of Low RDS(on) MOSFETs

? Optimized gate charge to minimize switching losses.
? Lower temperature, smaller size, better thermal characteristics.

NVMe PCIe Gen3 x4 M.2 Connector

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system?s potential.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation

Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.

Program On Top Gets Highest Priority

Real-Time Network Monitoring

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth ? twice times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Note: Only New Gen AMD Ryzen? with Radeon? Graphics processors support displaying function.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.

High-End Audio Capacitors

GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.

Audio Noise Guard

GIGABYTE motherboards feature an audio noise guard that essentially separates the board?s sensitive analog audio components from potential noise pollution at the PCB level.

Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Connectors

Internal Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

RGB FUSION 2.0

With A520 Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs. RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips* for their PC build. Already feature filled with colors and patterns, RGB Fusion 2.0 are now upgraded to improve the Addressable LED support. With external Addressable LED strips, where each LED is digitally addressable that users can experience even more patterns, styles, and illuminations.

With A520 Motherboards support the external 5V Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.

* The external RGB LED strips and Addressable LED strips are not included with Motherboard purchase.

Series	Socket AM4
Model	A520M S2H (rev. 1.0)
CPU	AMD Socket AM4, Support for: 3rd Generation AMD Ryzen Processors/ 3rd Generation AMD Ryzen with Radeon Graphics Processors
CPU	Click here to see the CPU support list.
Chipset	AMD A520
Memory	2x DDR4 DIMM Sockets Supporting Up to 64 GB (32 GB Single DIMM Capacity) of System Memory
	3rd Gen AMD Ryzen Processors:
	Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
	3rd Gen AMD Ryzen with Radeon Graphics Processors:
	Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Memory Modules
	Dual Channel Memory Architecture
	Support for ECC Un-Buffered DIMM 1Rx8/2Rx8 Memory Modules
	Support for Non-ECC Un-Buffered DIMM 1Rx8/2Rx8/1Rx16 Memory Modules
	Support for Extreme Memory Profile (XMP) Memory Modules
On-Board Graphics	Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics Processors:
	1x D-Sub Port, Supporting a Maximum Resolution of 1920x1200@60 Hz
	1x DVI-D Port, Supporting a Maximum Resolution of 1920x1200@60 Hz
	* The DVI-D port does not support D-Sub connection by adapter.
	1x HDMI Port, Supporting a Maximum Resolution of 4096x2160@60 Hz
	* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
	Support for Up to 3 Displays at the Same Time
	Maximum Shared Memory of 16 GB
Audio	Realtek ALC887 Codec
	High Definition Audio
	2/4/5.1/7.1-Channel
	* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN	Realtek GbE LAN Chip (1000 Mbit/100 Mbit)
Expansion Slots	CPU:
	1x PCI Express x16 Slot, Supporting PCIe 3.0 and Running at x16
	Chipset:
	2x PCI Express x1 Slots, Supporting PCIe 3.0
Storage Interface	CPU:
	1x M.2 Connector (Socket 3, M Key, Type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD Support)
	Chipset:
	4x SATA 6Gb/s Connectors
	Support for RAID 0, RAID 1, and RAID 10
USB	CPU:
	4x USB 3.2 Gen 1 Ports on the Back Panel
	Chipset:
	2x USB 3.2 Gen 1 Ports Available Through the Internal USB Header
	6x USB 2.0/1.1 Ports (2 Ports on the Back Panel, 4 Ports Available Through the Internal USB Headers)
Internal I/O Connectors	1x 24-pin ATX Main Power Connector
	1x 8-pin ATX 12V Power Connector
	1x CPU Fan Header
	2x System Fan Headers
	1x Addressable LED Strip Header
	1x RGB LED Strip Header
	1x M.2 Socket 3 Connector
	4x SATA 6Gb/s Connectors
	1x Front Panel Header
	1x Front Panel Audio Header
	1x USB 3.2 Gen 1 Header
	2x USB 2.0/1.1 Headers
	1x Trusted Platform Module (TPM) Header (2x6 pin, for the GC-TPM2.0_S Module Only)
	1x Serial Port Header
	1x Speaker Header
	1x Chassis Intrusion Header
	1x Clear CMOS Jumper
Back Panel Connectors	1x PS/2 Keyboard/Mouse Port
	1x D-Sub Port
	1x DVI-D Port
	1x HDMI Port
	4x USB 3.2 Gen 1 Ports
	2x USB 2.0/1.1 Ports
	1x RJ-45 Port
	1x Q-Flash Plus Button
	3x Audio Jacks
I/O Controller	iTE I/O Controller Chip
H/W Monitoring	Voltage Detection
	Temperature Detection
	Fan Speed Detection
	Overheating Warning
	Fan Fail Warning
	Fan Speed Control
	* Whether the fan speed control function is supported will depend on the fan you install.
BIOS	1x 128 Mbit Flash
	Use of Licensed AMI UEFI BIOS
	PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Operating System Support	Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 20.5cm
Warranty Information
Warranty	3 Year Warranty
