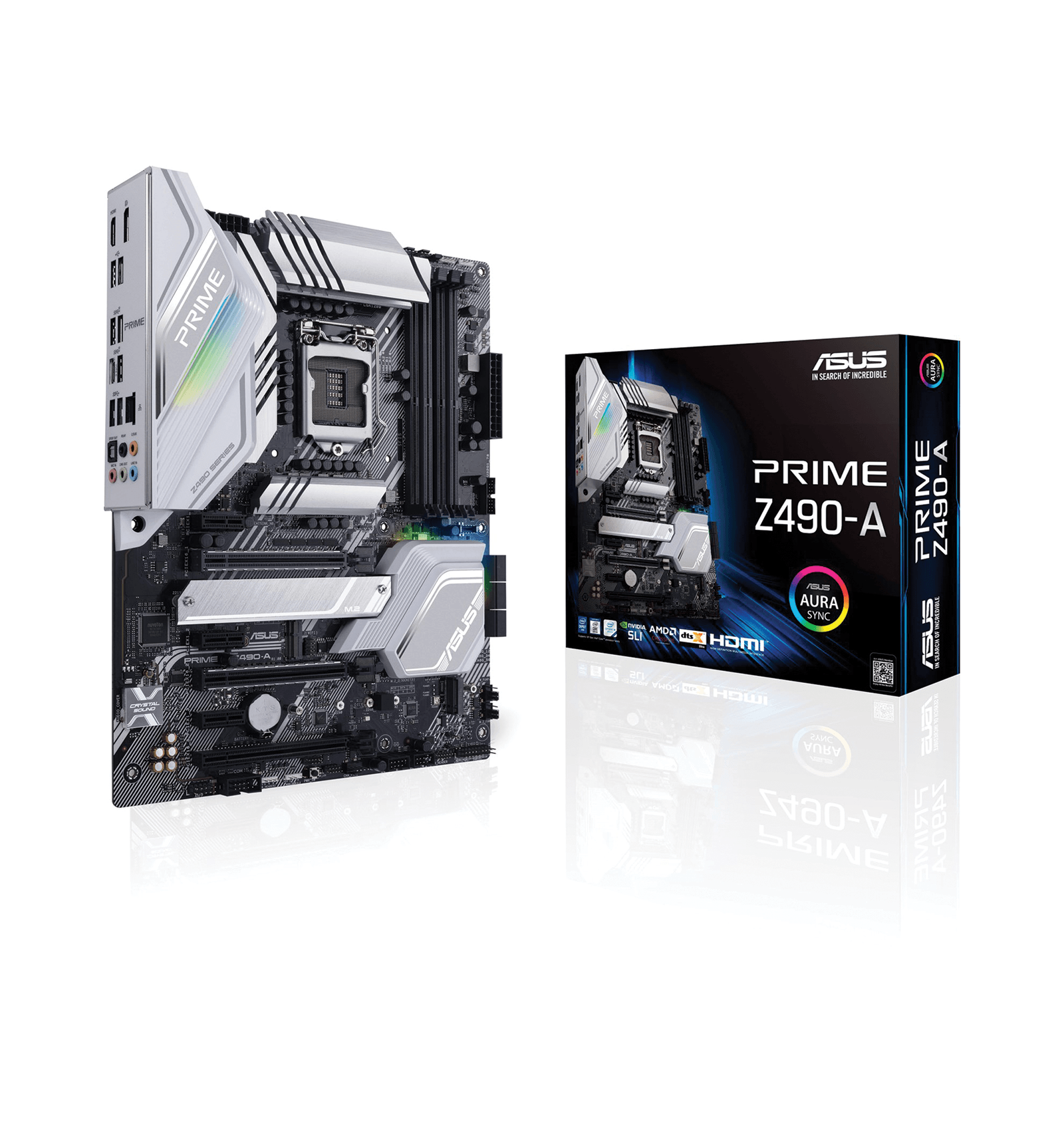

ASUS PRIME Z490-A MOTHERBOARD

The ASUS PRIME Z490-A Motherboard is ready to unleash the full potential of 10th Gen Intel Core processors. With a robust design, comprehensive cooling solutions and intelligent tuning, theh ASUS PRIME Z490-A Motherboard provides users and DIY PC builders with a range of performance tuning options via intuitive software and firmware.

Tweak performance settings to match the way you work or play, such as 5-way Optimisation, AI Cverclocking, AI Cooling and UEFI BIOS. ASUS AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.

Cooling

The ASUS AI Cooling function will manage and control the connected fans to ensure optimal settings. AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down. The Prime Z490 is engineered with multiple onboard heatsinks and an array of hybrid fan headers. An M.2 drive sits under a passive heatsink to prevent throttling that can occur with sustained transfers. The heatsink is held in place by easily-removable captive screws, giving you the flexibility to move it to another M.2 slot. A dedicated header supplies over 3 amps for high-performance PWM or DC water pumps, plus a second dedicated header for AiOs.

TECHNICAL SPECIFICATIONS

CPU

• Intel© Socket LGA 1200 for 10th Gen Intel© Core?, Pentium© Gold and Celeron© processors*
• Supports Intel© 14 nm CPU
• Supports Intel© Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0**
• * Refer to www.asus.com for CPU support list
• **Intel© Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel© Z490 Chipset

Memory

• "4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/
• 3000(O.C.)/ 2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*"
• Dual Channel Memory Architecture
• Supports Intel© Extreme Memory Profile (XMP)
• OptiMem II
• * 10th Gen Intel© Core? i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Graphics

• 1 x DisplayPort 1.4*
• 1 x HDMITM 1.4b
• *Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
• **Graphics specfications may vary between CPU types.

Expansion Slots

• Intel© 10th Gen processors
• 2 x PCIe 3.0 x16 slots (support x16, x8/x8 modes)
• Intel© Z490 Chipset
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 3 x PCIe 3.0 x1 slots*
• *The PCIe x1_2 slot shares bandwidth with M.2 slot (Key E).
• **Support PCIe bifurcation for RAID on CPU function.

Multi-GPU Support

• Supports NVIDIA 2-Way SLI© Technology
• Supports AMD 3-Way CrossFireX? Technology

Storage

• Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
• Intel© Z490 Chipset
• M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
• M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x2, x4 mode)**
• 6 x SATA 6Gb/s ports
• Intel© Rapid Storage Technology supports Raid 0,1,5,10
• Intel© Optane? Memory Ready
• *The M.2_1 socket shares bandwidth with SATA_2.
• **M.2_2 slot shares bandwidth with SATA_56. When M.2_2 slot is operating in PCIe x4 mode, SATA_56 will be disabled.

Ethernet

• 1 x Intel© I225-V Ethernet
• ASUS LANGuard

Wireless and Bluetooth

• M.2 slot (Key E) (Wi-Fi module is sold separately)

USB

• Rear USB (Total 8 ports)
• 4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C©)
• 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
• 2 x USB 2.0 port(s) (2 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 2 front panel connector(s) (suppport(s) USB Type-C©)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Audio

• "Realtek© S1220A 8-Channel High Definition Audio CODEC
• - Impedance sense for front and rear headphone outputs
• - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
• - Supports up to 32-Bit/192kHz playback*"
• Audio Features:
• - Power pre-regulator reduces power input noise to ensure consistent performance
• - Rear optical S/PDIF out port
• - Premium Japanese audio capacitors
• - Audio Shielding
• - Dedicated audio PCB layers
• - Audio cover
• - Unique de-pop circuit
• * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.

Back Panel IO

• 4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C©)
• 2 x USB 3.2 Gen 1 port(s) (2 x Type-A)
• 2 x USB 2.0 port(s) (2 x Type-A)
• 1 x DisplayPort
• 1 x HDMITM port
• 1 x Intel© I225-V Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port

Internal I/O

• Fan and cooling related
• 1 x 4-pin CPU Fan header(s)
• 1 x 4-pin CPU OPT Fan header(s)
• 1 x 4-pin AIO Pump header(s)
• 2 x 4-pin Chassis Fan header(s)
• 1 x 4-pin M.2 Fan header(s)
• 1 x W_PUMP+ header(s)
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 6 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 2 front panel connector(s) (suppport(s) USB Type-C©)
• 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
• Miscellaneous
• 2 x AURA Addressable Gen 2 header(s)
• 2 x AURA RGB header(s)
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x CPU Over Voltage jumper
• 1 x Front Panel Audio header (AAFP)
• 1 x M.2 slot (Key E)
• 1 x Power button
• 1 x 20-3 System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt header

Accessories

• Cables
• 3 x SATA 6Gb/s cables
• Documentation
• 1 x User manual
• Installation Media
• 1 x Support DVD
• Miscellaneous
• 1 x M.2 Rubber Package(s)
• 1 x M.2 SSD screw package(s)
• 1 x M.2 Key E screw package
• 1 x Q-connector
• 1 x Fan bracket

Form Factor

• ATX Form Factor
• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
