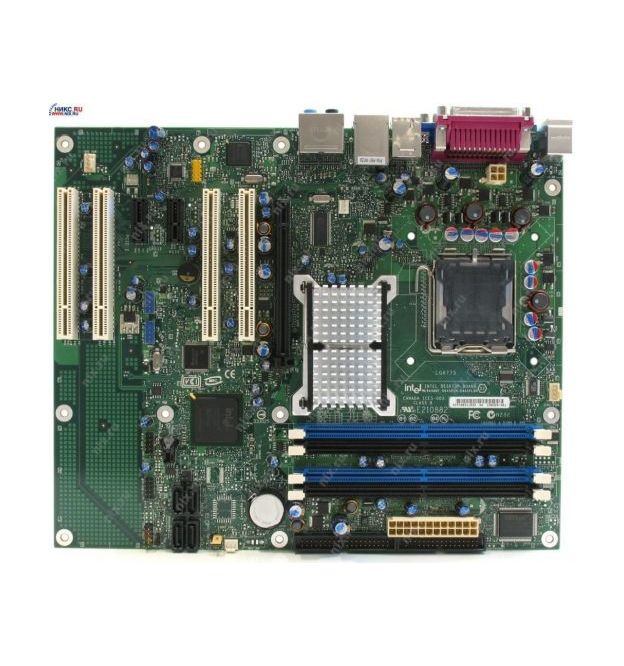

INTEL 945GNTL S775 Motherboard

The Intel Desktop Board D945GNT offers new levels of performance and flexibility for the digital office and Home Automation. Based on the Intel© 945G Express Chipset, this board supports dual-core, Intel EM64T and advanced processing from onboard Intel© GMA 950 or PCI Express * Graphics.
The Intel Desktop Board D945GNT is Microsoft Windows Vista Premium Ready. The Intel 945G Express Chipset fully supports the visually stunning Windows Aero * user interface with transition effects and stunning realistic animations.

• ATX form factor (12.00 inches by 9.60 inches [304.80 mm by 243.84 mm])
• Processors
• Support for an Intel© Pentium© D processor in an LGA775 socket with an 800 MHz system bus
• Support for Intel© Pentium© 4 in an LGA775 socket with an 800 MHz system bus
• Support for Intel© Celeron© D processor in an LGA775 socket with a 533 MHz system bus
• See all supported processors
• Memory
• Four 240-pin DDR2 SDRAM DIMM sockets
• Support for DDR2 667, DDR2 533, or DDR2 400 MHz DIMMs
• Support for up to 4GB of system memory
• Intel © 945G Express Chipset
• Legacy I / O Control Legacy I / O of floppy drive controller, serial, parallel and PS / 2 * ports
• Intel© High Definition Sound Audio Subsystem of one of the following configurations:
• 8-channel (7.1) audio subsystem with five analog audio outputs and one S / PDIF input for optical digital audio output using the Sigmatel 9223 * audio codec
• 6-channel (5.1) audio subsystem with three analog audio outputs using the Sigmatel 9220 * audio codec
• Video Intel© GMA 950 graphics card subsystem
• USB support for USB 2.0 devices
• The LAN Support board provides one of the following:
• Gigabit (10/100/1000 Mbits / sec) LAN subsystem using the Intel© 82573E / 82573V / 82574V Gigabit Ethernet Controller One serial port
• 10/100 Mbits / sec LAN subsystem using the Intel© 82562GX / 82562GZ PLC device
• Peripheral interfaces
• Eight USB 2.0 ports
• A serial port
• One parallel port
• Four Serial ATA interfaces
• One parallel ATA IDE interface with UDMA 33, ATA-66/100
• A floppy drive interface
• PS / 2 keyboard and mouse ports
• The expansion board offers one of the following:
• Four Conventional PCI * bus connectors
• Two PCI Express * x1 bus add-on slots on the connectors card
• One PCI Express x16 bus add-in card connector
• Microsoft Vista * Premium Ready With a PC built with Intel© Core ? 2 Duo or Intel© Core ? 2 Quad processors, and the Intel© Desktop Board, you can experience the more responsive and manageable Microsoft Windows Vista * environment. including a new visual sophistication of the Windows Aero interface

ÿ

• Processors
• Intel© Pentium© D Processor
• Intel © Pentium © 4
• Intel © Celeron © D Processor
• Intel © 945G Express Chipset
• Intel © Classic Series Intel © Classic Series
• Intel© Media Series Intel© Media Series
