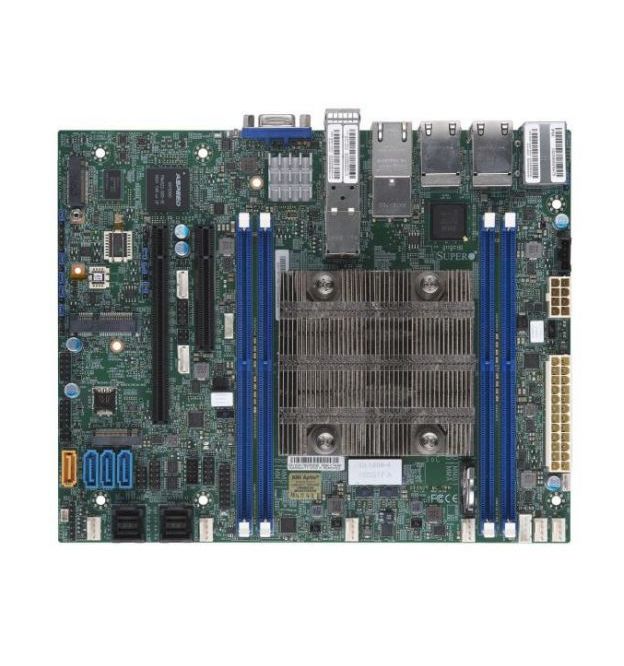

SUPERMICRO MB - SOC PENTIUM D1508 2.2GHZ 2C 4T 4X DIMM ECC-REG 2X 1GBE 2X 10GBE SFP+

CODE: MBD-X10SDV-2C-TP4F

R 9095

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

SUPERMICRO MB - SOC PENTIUM D1508 2.2GHZ 2C 4T 4X DIMM ECC-REG 2X 1GBE 2X 10GBE SFP+

Specifications

ÿ
Processor/Cache
ÿ
CPU	Intel© Pentium© Processor D1508. Socket FCBGA1667 supported, CPU TDP support 25W
Cores / Cache	2 cores, 4 threads / 3MB cache

ÿ
System Memory
ÿ
Memory Capacity	128GB Registered ECC RDIMM, DDR4-2133MHz64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots
Memory Type	1866/1600MHz ECC DDR4 ECC RDIMM and ECC/Non-ECC UDIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

ÿ
On-Board Devices
ÿ
Chipset	System on Chip
SATA	SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 RSTe
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Network Controllers	Dual LAN with 10G SFP+ from D-1500 SoC Dual LAN with 1GbE with Intel© I210
Graphics	Aspeed AST2400 BMC

ÿ
Input / Output
ÿ
SATA	4 SATA3 (6Gbps) port
LAN	2 10G SFP+ LAN ports 2 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	5 USB 2.0 ports (4 headers, 1 Type A) 2 USB 3.0 ports (2 rear)
Video Output	1 VGA port
Serial Port / Header	1 COM Port (1 header)
TPM	TPM Header

Expansion Slots
ÿ
PCI-E	2 PCI-E 3.0 x8 M.2 PCI-E 3.0x4, M Key 2242/2280/22110, Mini-PCI-E with mSATA support
M.2	M.2 Interface: 1 SATA/PCI-E 3.0 x4 Form Factor: 2242/2280/22110 Key: M-Key

ÿ
System BIOS
ÿ
BIOS Type	128Mb SPI Flash with AMI BIOS
BIOS Features	PCI 3.0 ACPI 5.0 USB Keyboard support SMBIOS 2.8 UEFI 2.4 RTC (Real Time Clock) Wakeup

ÿ
Management
ÿ
Software	Intel© Node Manager, IPMI2.0, KVM with dedicated LAN, NMI, SUM, SuperDoctor© 5, Watchdog
Power Configurations	ACPI Power Management ATX Power connector +12V DC Power Input Control of power-on for recovery from AC power loss CPU thermal trip support for processor protection M.2 NGFF connector, Node Manager Support, SDDC, System level control, UID, WOL

ÿ
PC Health Monitoring
ÿ
Voltage	+1.8V, +12V, +3.3V, +5V, 1.2V (VDIMM), Chassis intrusion header, System level control, VBAT
FAN	6x 4-pin fan headers (up to 6 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Low noise fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for on/off control, System level control
Temperature	Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI
LED	CPU / System Overheat LED
Other Features	12V DC or ATX Power Source, Chassis intrusion detection, Chassis intrusion header, RoHS

ÿ
Operating Environment
ÿ
Operating Temperature Range	0øC ~ 60øC (32øF ~ 140øF)
Non-Operating Temperature Range	-40øC - 85øC (-40øF - 185øF)
Operating Relative Humidity Range	10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range	10% ~ 95% (non-condensing)
