Product Information
ÿ

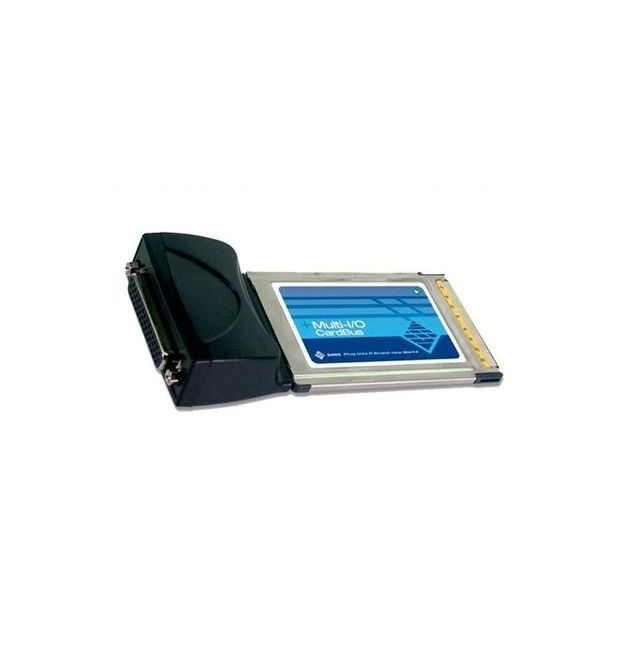

SUNIX CBM2925 is a 2-port RS-232 and 1-port IEEE1284 Parallel PCMCIA Type II 32-bit PC card that widely used in varieties of portable systems. It isÿdesigned with SUNIX high performance and realizable single chipset quad UARTs, UL7512EQ and as well built with many of SUNIX advanced features and technologies, Each port offer data transfer rate up to 230.4 Kbps with built-in 32-byte FIFO buffer to give you maximum system performance and efficiency. CBM2925 also provides full modem control signals to ensure compatibility with kinds of RS-232 peripherals. It isÿcreated for use in the industrial sector and as well ideal for home or office uses. This Card Bus is your best solution to utilize the peripheral with serial port in an easy-to-use environment such as plug-n-play and hot-swapping function.
Features
- High reliability SUNIX UL7512EQ 16C750 compatible UART controller on-board.
- Compliance with PCI 33MHz Ver. 3.0/2.3/2.2 specification.
- Each RS-232 ports communication speeds up to 230.4Kbps.
- Built-in 5KV ESD protection for all serial signals meets IEC1000-4-2 standard.
- Hot-swapping feature allows you to attach/detach RS-232 devices withoutÿ first powering your computer off.
- Plug-n-Play, I/O address and IRQ assigned by BIOS.
- Certified by CE, FCC, RoHS, and Microsoft WQHL approval.
- Support Microsoft Windows, Linux.
| Hardware |
| Product Description | 2-port RS-232 and 1-port IEEE1284 Parallel CardBus | | Controller | SUNIX Matrix UL7512EQ (16C650 UART Compatible) | | Bus Interface | PCMCIA Type? 32-bit CardBus | | IRQ & IO | Assigned by System | | PCB connector | DB44 Female |
|
| Serial Communication |
| Interface | RS-232 | | No. of Port | 2-port | | FIFO | 32 byte (Hardware) | | Signal | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI | | Baud rate | 50 bps to 230.4 Kbps | | Data bit | 5,6,7,8 | | Stop bit | 1,1.5,2 | | Parity | None, Even, Odd, Space, Mark | | Flow Control | RTS/CTS (Hardware) , XON/XOFF(Software) | | Protection | ?15KV Human Body Model (HBM)
?15KV IEC1000-4-2 Air Gap Discharge
?8KV IEC1000-4-2 Contact Discharge |
|
| ÿ |
| Parallel Communication |
| Interface | IEEE1284 | | No. of Port | 1-Port | | ÿ | DB25 Female | | Mode | SPP/ECP/EPP/BPP(PS2) | | Speed | Maximum 2.7MBps | | FIFO | 16 byte (Hardware) |
|
| ÿ |
| Driver Support | ÿ |
| ÿ | 3.1/95/98/NT/ME/2000/XP/2003/Vista (32/64 bit) /CE5.0/XP Embedded | | ÿ | Linux 2.4.x / 2.6.x | | ÿ | DOS |
|
| ÿ |
| Regulatory Approvals |
| Hardware | EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, RoHS | | Software | Microsoft WHQL Window XP |
|
| ÿ |
| ÿ |
| ÿ |
| Operating Temperature | 0 to 60?C (32 to 140?F) | | Operating Humidity | 5% to 95% RH | | Storage Temperature | -20 to 85?C (-4 to 185?F) |
|
| ÿ |
| ÿ |
| ÿ |
| Connection Cable |
| Cable | DB44 male to 2-port DB9 Male & 1-port DB25 Female 30cm cable |
|
| Dimension(Unit = mm) |
| PCB Dimension | 132(W) x 58(D) x 21(H) |
|
