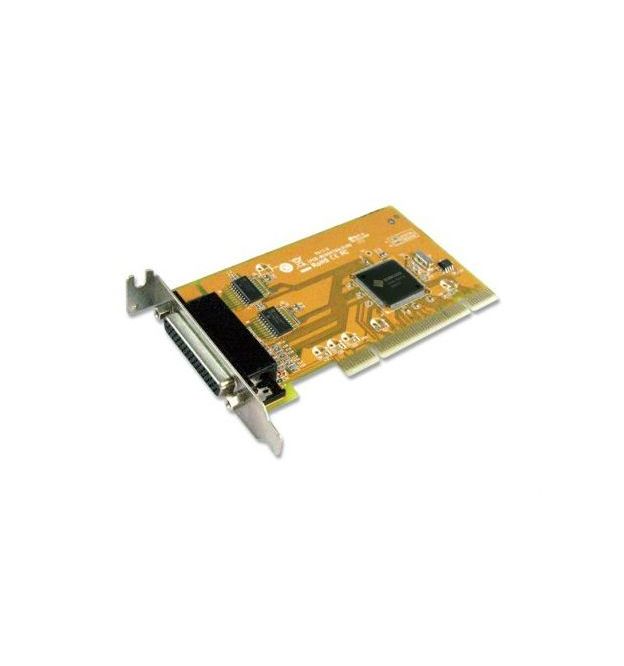

Sunix mio5079AL 2s+1p Low+Std

Overview:

The majority of todayïs motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5079AL Multi I/O board, users can expand two RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5079AL is compatible with both 32/64-bit PCI architecture supporting 3.3 and 5V Bus, allowing the board to be installed in any slim size PC-based system with low profile bracket structure. Furthermore, SUNIX MIO5079AL Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.

Features:

• Expands 2-port RS-232 COM and 1-port IEEE1284 LPT on system.
• Universal PCI compatible with 64/32-bit PCI-X/PCI Bus and 3.3/5V connector key.
• High reliability SUNIX SUN1989 16C950 compatible Multi-IO controller on-board.
• Expands two RS-232 serial port with communication speed up to 115.2Kbps.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ñ2KV ESD protection for all serial signals.
• Support IEEE 1284-1994 parallel port standard
• ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
• SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
• Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
• Plug-n-Play, I/O address and IRQ assigned by system.
• Low profile bracket design idea for slim or portable PC.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.

Product Code	AC-Si5079AL+S
Description
Product Description	2-port RS-232 & 1-port Parallel Universal PCI Low Profile Multi-I/O Board
General
Interface	RS-232 and IEEE1284
Controller	SUNIX SUN1989 (16C950 UART Compatible)
Bus	Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
IRQ & IO	Assigned by System
Serial Communication
Interface	RS-232
No. of Port	2-port
FIFO	128 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate	50 bps to 115.2 Kbps
Data bit	5, 6, 7, 8
Stop bit	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	ñ2KV ESD protection for each signal Human Body Model (HBM)
PCB connector	DB44 Female
Cable Connector	DB9 Male
Parallel Communication
Interface	IEEE1284
No. of Port	1-port
FIFO	16 byte (Hardware)
Signal	SPP/ECP/EPP/BPP
Speed	Maximum 1.8MBps
PCB connector	DB44 Female
Cable Connector	DB25 Female
Driver Support
Microsoft Client	Windows XP/Vista/7 (X86/X64)
Microsoft Server	Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded	Windows XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7
Linux	Linux 2.4.x / 2.6.x / 3.x
DOS	DOS
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows
	Microsoft Client: XP/Vista/7 (X86/X64)
	Microsoft Server: 2000/2003/2008 (X86/X64)
Environment
Operation Temperature	0 to 60øC (32 to 140øF)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85øC (-4 to 185øF)
Dimension
PCB Dimension	120 x 63 mm
Bracket	Low Profile 80 mm
Bracket Space	1
