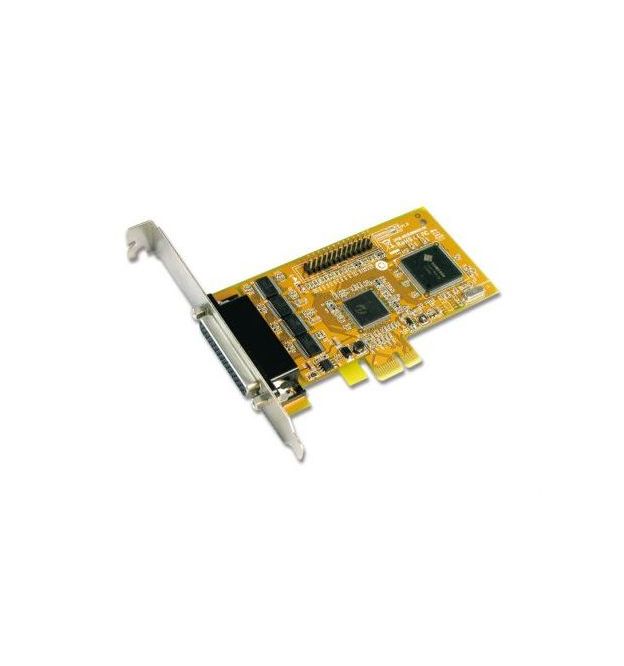

Sunix mio5499A 4xser+lpt pci-e

Overview:

The majority of todayïs motherboards are not equipped with any RS-232 or parallel port. With SUNIX MIO5499A Multi I/O board, users can expand four RS-232 and one IEEE1284 parallel ports to their system, allowing them to use serial and parallel devices further. SUNIX MIO5499A is compatible with PCI Express x1, x2, x4, x8 and x16 lane and PCI/PCI-x Bus, allowing the board to be installed in virtually any PC system. Furthermore, SUNIX MIO5499A Multi-IO card supports majority of the OS on the market. We provide driver support for Microsoft Windows 32/64-bit platform, Linux, making it the best and most economical solution for commercial and industrial applications.

Features:

• Expands 4-port RS-232 COM and 1-port IEEE1284 LPT on system.
• Designed to meet PCI Express Base Specification Revision 1.1.
• High reliability SUNIX SUN1999 16C950 compatible Multi-IO controller on-board.
• Expands four RS-232 serial port with communication speed up to 115.2Kbps.
• On-chip hardware auto flow control to guarantee no data loss.
• Built-in ñ2KV ESD protection for all serial signals.
• Support IEEE 1284-1994 parallel port standard
• ECP(Enhance Capacity Port) / EPP(Enhance Parallel Port)
• SPP(Standard Parallel Port) / BPP(Bi-direction Parallel Port)
• Auto-switching between ECP/EPP/SPP/BPP modes without configuration.
• Plug-n-Play, I/O address and IRQ assigned by system.
• Certified by CE, FCC, RoHS, and Microsoft WHQL approval.
• Support Microsoft Windows, Linux, and DOS.

Specifications for the product series
Product Code	AC-Si5499A
Description
Product Description	4-port RS-232 & 1-port Parallel PCI Express Multi-I/O Board
General
Interface	RS-232 and IEEE1284
Controller	SUNIX SUN1999 (16C950 UART Compatible)
Bus	PCI Express one lane (x1)
IRQ & IO	Assigned by System
Serial Communication
Interface	RS-232
No. of Port	4-port
FIFO	128 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate	50 bps to 115.2 Kbps
Data bit	5, 6, 7, 8
Stop bit	1, 1.5, 2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	ñ2KV ESD protection for each signal Human Body Model (HBM)
PCB connector	DB44 Female
Cable Connector	DB9 Male
Parallel Communication
Interface	IEEE1284
No. of Port	1-port
FIFO	16 byte (Hardware)
Signal	SPP/ECP/EPP/BPP
Speed	Maximum 1.8MBps
PCB connector	13x2 Pin Header
Cable Connector	DB25 Female
Driver Support
Microsoft Client	Windows XP/Vista/7 (X86/X64)
Microsoft Server	Windows 2000/2003/2008 (X86/X64)
Microsoft Embedded	Windows XP Embedded/POS Ready 2009/Embedded System 2009/Embedded Standard 7
Linux	Linux 2.4.x / 2.6.x
DOS	DOS
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows
	Microsoft Client: XP/Vista/7 (X86/X64)
	Microsoft Server: 2000/2003/2008 (X86/X64)
Environment
Operation Temperature	0 to 60øC (32 to 140øF)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85øC (-4 to 185øF)
Dimension
PCB Dimension	116 x 69 mm
Bracket	Standard 121 mm
Bracket Space	2
