Home/Components/Pci Cards/Sunix SER5037A 2-Port RS-232 Universal PCI Serial Board

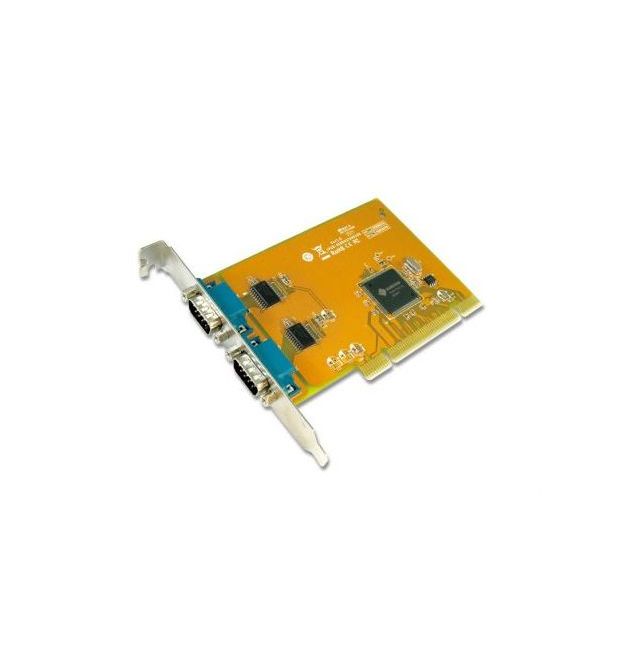

Sunix SER5037A 2-Port RS-232 Universal PCI Serial Board

CODE: SER5037A

R 450

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Sunix SER5037A 2-Port RS-232 Universal PCI Serial Board

SPECIFICATIONS
Brand	Sunix
Model	SER5037A
Series	RS-232 Series
Product Description	2-port RS-232 Universal PCI Serial Board
Serial Communication
nterface	RS-232
Controller	SUNIX SUN1989 (16C950 UART Compatible)
Bus	Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port	2-port
IRQ & IO	Assigned by System
FIFO	128 byte (Hardware)
Signal	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND, RI
Baud rate	50 bps to 115.2 Kbps
Data bit	5,6,7,8
Stop bit	1,1.5,2
Parity	None, Even, Odd, Space, Mark
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	ñ2KV ESD protection for each signal Human Body Model (HBM)
PCB connector	DB9 Male
Driver Support
Windows Client	XP/Vista/7/8/8.1 (X86/X64)
Windows Server	2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Windows Embedded	Windows CE 4.2/5.0/6.0
XP Embedded / POSReady 2009 / POSReady 7 / Embedded System
Linux	Linux 2.4.x / 2.6.x / 3.x
DOS	DOS
FreeBSD	FreeBSD 5.3~5.5 / 6.0~6.4
QNX	QNX 6.3.2/6.4.0
IBM OS/2	WARP 3/WARP 4
SCO UnixWare	UnixWare 7.1.3/7.1.4/ Open Server 5.0.7/6.0
Sun Microsystems	Solaris 10
Regulatory Approvals
Hardware	EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows
	Windows Client: XP/Vista/7/8/8.1 (X86/X64)
	Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Environment
Operation Temperature	0 to 60øC (32 to 140øF)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85øC (-4 to 185øF)
Dimension
PCB Dimension	120 x 82 mm
Bracket	Standard 121 mm
Bracket Space	1
Warranty Information
Warranty	12 Month Warranty
