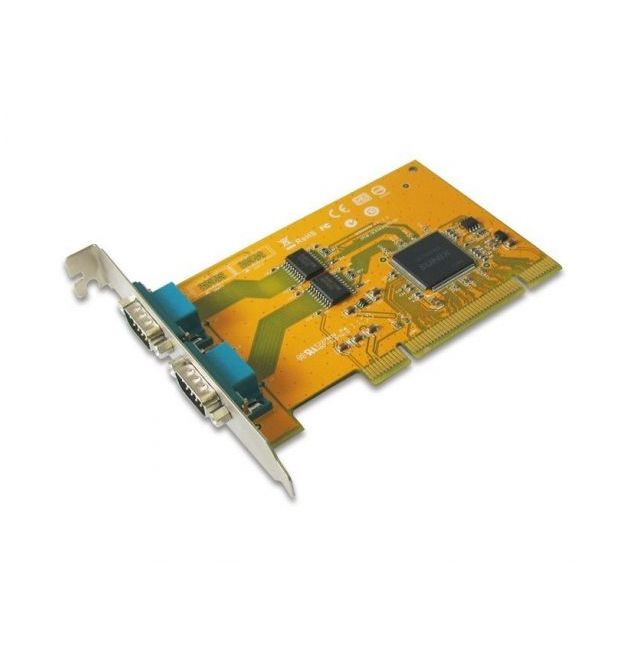

Sunix SER5037D 2-port RS-232 Universal PCI Serial Remap Board

CODE: SER5037D

R 915

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Sunix SER5037D 2-port RS-232 Universal PCI Serial Remap Board

SPECIFICATIONS
Brand	Sunix
Model	SER5037D
Series	RS-232 Series
Serial Communication
Interface	RS-232
Controller	SUNIX UL7512EQ (16C650 UART Compatible)
BUS	Universal PCI 64/32bit 3.3V/5V PCI Ver 3.0, 2.3, 2.2, 2.1
No. of Port	2port
IRQ & IO	Assigned by System
FIFO	32byte Hardware
Signal	DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
Baud rate	50bps ~115.2Kbps
Stop bit	1, 1.5, 2
Parity	even, odd, none, mark, space
Flow Control	None, Xon/Xoff, RTS/CTS
Protection	ñ2KV ESD protection for each signal Human Body Model (HBM)
PCB Connector	DB9 Male
Driver Support
Windows Client	9x/NT/XP/Vista/7/8/8.1 (X86/X64)
Windows Server	2000 / 2003 / 2008 / 2008 R2 / 2012 / 2012 R2 (X86/X64)
Windows Embedded	XP Embedded / POSReady 2009 / POSReady 7 /Embedded System 2009
Linux	Linux 2.4.x / 2.6.x
DOS	DOS
* FreeBSD	FreeBSD 5.3~5.5 / 6.0~6.4
* QNX	QNX 6.3.2 / 6.4.0
* IBM OS/2	WARP 3 / WARP 4
* SCO UnixWare	UnixWare 7.1.3 /7.1.4 / Open Server 5.0.7 / 6.0
* Sun Microsystems	Solaris 10
Regulatory Approvals
Hardware	CE EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, VCCI Class B
FCC Part 15 Class B, BSMI: CNS13438, C-Tick: CISPR22 AS/NZS, RoHS
Software	Microsoft WHQL Windows
	Windows Client: XP/Vista/7/8/8.1 (X86/X64)
	Windows Server: 2000/2003/2008/2008 R2/2012/2012 R2 (X86/X64)
Environment
Operation Temperature	0 to 60øC (32 to 140øF)
Operation Humidity	5 to 95% RH
Storage Temperature	-20 to 85øC (-4 to 185øF)
Dimension
PCB Dimension	120 x 78 mm
Bracket	Standard 121mm
Bracket Space	1
Warranty Information
Warranty	12 Month Warranty
