Overview:

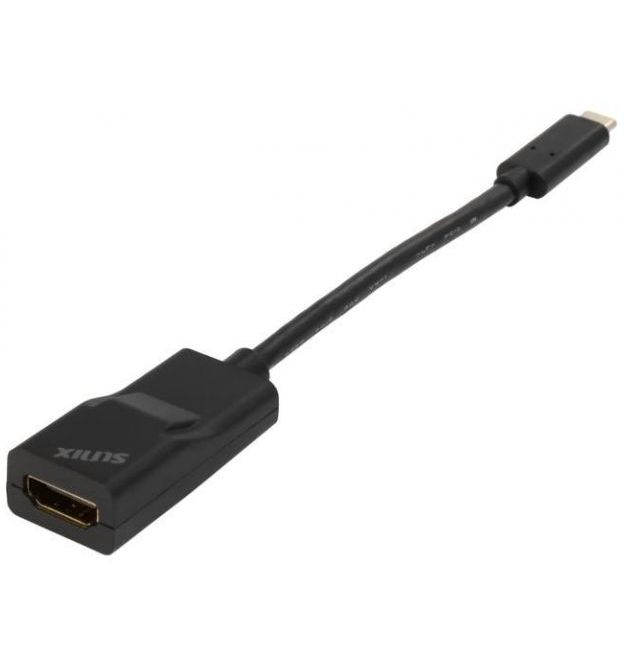

SUNIX C2HC3M0, USB Type-C video Adapter lets you connecting your USB 3.1 Type-C source device featuring DisplayPort? Alternate Mode to an HDMI 2.0 enabled UHD monitor, television, projector or other compatible display in up to UHD 2160p (3840x2160) and 1080p (1920x1080P) at 60Hz. The USB 3.1 Type-C to HDMI2.0 UHD Adapter supports all USB 3.1 Type-C devices with DisplayPort? Alternate mode and operating systems, including Apple OS X, Windows and Google Chrome OS. With ultra-compact, highly-portable, and no external power needed design, this video adapter is the best travel accessories of notebooks and Ultrabooks.
Features:
- Adapts USB Type-C equipped laptops to work with HDMI-enabled displays.
- Integrated active chip to provide a HDMI 2.0 conversion from USB-C Type port.
- Compliant with VESA DisplayPort Alternate Mode for USB Type-C standard.
- Video resolution up to UHD 2160p at 60Hz and FHD 1080p at 120Hz.
- High-definition digital audio output over HDMI channel.
- Shielding Case?s anti-jamming capability gives high quality signal.
- Plug-&-play, driver free, and no external power needed.
- Support Apple MAC, Google Chromebook and Microsoft Windows OS.
- Certified by Electromagnetic Compatibility (CE, FCC, VCCI, BSMI) and RoHS approval.
- Compliant with VESA DisplayPort Alternate Mode for USB-C Standard.
- Driver free under Apple OSX, Google Chrome and Microsoft Windows
- Suitable for HDMI 2.0-enabled TV, monitor and projector
- The new HDMI 2.0 feature
- Connect a HDMI 2.0 monitor to an USB-C equipped laptop / mobile device
- USB Type-C Reversible Design
- Shielding Case?s anti-jamming capability gives high quality signal
| Specifications | |
| Product Code | SC-SC2HC3M0 |
| Model | C2HC3M0 |
| Description | USB Type-C to HDMI 2.0 4K60Hz UHD Active Adapter |
| Input Interface | USB Type-C |
| USB Type-C Alternate Mode | |
| Output Interface | HDMI Ver2.0 |
| Standard HDMI Female | |
| Power | USB Bus Power |
| +5VDC @ 250mA | |
| Display Resolution | Resolution : Name : Refresh Rate |
| 640x480 : VGA : 60 Hertz | |
| 800x600 : SVGA : 60 Hertz | |
| 1024x768 : XGA : 60 Hertz | |
| 1280x720 : 720p : 60 Hertz | |
| 1280x768 : WXGA+ : 60 Hertz | |
| 1280x800 : WXGA : 60 Hertz | |
| 1280x1024 : SXGA : 60 Hertz | |
| 1366x768 : WXGA+ : 60 Hertz | |
| 1400x1050 : SXGA+ : 60 Hertz | |
| 1600x1200 : UXGA : 60 Hertz | |
| 1680x1050 : WSXGA+ : 60 Hertz | |
| 1920x1080 : 1080p Full HD : 60 / 120Hertz | |
| 1920x1200 : WUXGA : 60 Hertz | |
| 2048x1152 : QXGA : 60 Hertz | |
| 2560x1600 : WQXGA : 60 Hertz | |
| 3840x2160 : 2160p UHD : 60 Hertz | |
| 4096x2160 : 4K++ : 60 Hertz | |
| Audio | 8-Channel Digital Audio |
| Driver Support | Driver free under |
| Apple MAC, Google Chrome, and Microsoft Windows | |
| Environment | Operation temp. 0 øC ~ 60 øC (32-140øF) |
| Operation humidity: < 85% non-condensing | |
| Storage temp. -10 øC ~ 85 øC (14~176øF) | |
| Regulatory Approvals | EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 |
| US: FCC Part 15 Class B | |
| TAIWAN: BSMI: CNS13438 | |
| JAPAN: VCCI | |
| Green Environment | RoHS, CRoHS, WEEE |
| Housing | ABS(Plastic) |
| Dimension | 46(L) x 22(W) x 13.2(H) mm |
| USB-C Cable length 80mm | |
| Weight | 25g (0.8oz) |
