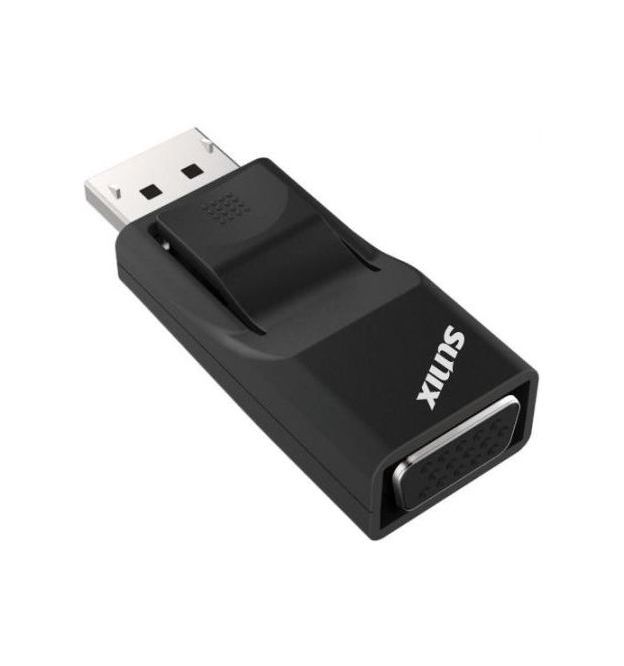

Sunix D2V17C0 DisplayPort to VGA Adapter
Sunix D2V17C0 DisplayPort to VGA Adapter
| SPECIFICATIONS | |
| Model | D2V17C0 |
| Description | DisplayPort to VGA Adapter |
| Input Interface | Compliant with DisplayPort 1.2/1.1 |
| Standard DisplayPort Male | |
| Output Interface | VGA RGB |
| VGA D-Sub 15-pin Female | |
| Display Resolution | |
| VGA | 640x480 |
| SVGA | 800x600 |
| XGA | 1024x768 |
| 720p | 1280x720 |
| WXGA+ | 1280x768 |
| WXGA | 1280x800 |
| SXGA | 1280x1024 |
| WXGA+ | 1366x768 |
| SXGA+ | 1400x1050 |
| UXGA | 1600x1200 |
| WSXGA+ | 1680x1050 |
| 1080p | 1920x1080 |
| WUXGA | 1920x1200 |
| Audio | Not Support |
| Housing | ABS |
| Power | DisplayPort Bus power |
| 500mW @ 3.3VDC | |
| Environment | Operation temp. 0 øC ? 40 øC (32-104øF) |
| Operation humidity: < 85% non-condensing | |
| Storage temp. -10 øC ? 85 øC (14~176øF) | |
| Dimension | 57.8L x 22W x 13.2H mm |
| Weight | 15gÿ(0.5oz) |
| Compliance | EUR: CE, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3 |
| US: FCC Part 15 Class B | |
| TAIWAN: BSMI: CNS13438 | |
| AS/NZS: C-Tick: CISPR22 | |
| JAPAN: VCCI | |
| Warranty Information | |
| Warranty | 12 Month Warranty |
