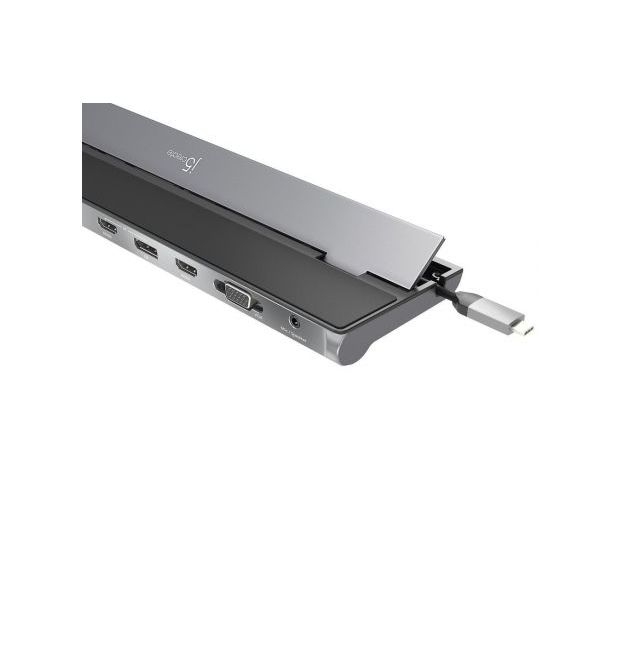

J5 JCD543 t-C docking statio
j5create JCD543 Specs
Connections
| USB | 3 x USB 3.1 / USB 3.2 Gen 1 Type-A 1 x USB 3.1 / USB 3.2 Gen 1 Type-C |
| Thunderbolt | None |
| Ethernet | 1 x RJ45 (10/100/1000 Mb/s) |
| FireWire | None |
| Display | 2 x HDMI 1 x DisplayPort 1 x VGA |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Combo |
| Memory Card Slots | 1 x SD (Unspecified Type) 1 x microSD (Unspecified Type) |
Host Connections
| System Connection | 1 x USB 3.1 / USB 3.2 Gen 1 Type-C Male |
| Connection Type | Integrated Cable |
| Interface Max Data Rate | 5 Gb/s |
General
| Number of Displays Supported | 3 |
| Maximum Resolution Supported | 3840 x 2160 at 30 Hz (Dual Display) 1920 x 1080 at 30 Hz (Triple Display) |
| Operating System Support | Windows, macOS/OS X |
| UASP Support | Yes |
Power
| Power Source | Bus Powered |
| Power Port | USB Type-C (Input) |
Physical
| Cable Length | 1.5' / 45ÿcm |
| Lock Slot | No |
| Dimensions | 13.8 x 3.25 x 0.9" / 35.1 x 8.26 x 2.3ÿcm |
| Weight | 11.2ÿoz / 317ÿg |
Packaging Info
| Package Weight | 0.975 lb |
| Box Dimensions (LxWxH) | 14.7 x 3.6 x 1.2" |
