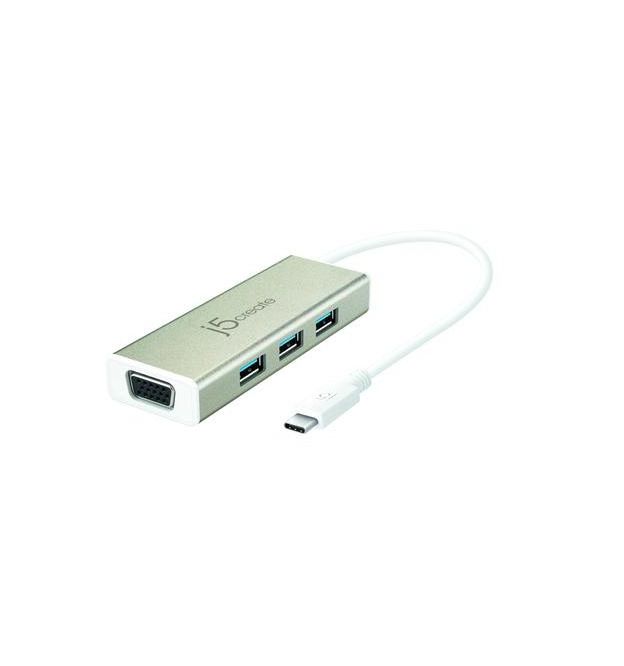

j5create 3-Port USB 3.1 Type-C Hub with VGA
j5create 3-Port USB 3.1 Type-C Hub with VGA
The 3-Port USB 3.1 Type-C Hub with VGA from j5create is designed to expand your USB connections for a USB Type-C device with its three integrated USB Type-A ports, which transfer up to 5 Gb/s. In addition, this hub sports a built-in USB Type-C cable that lets your computer system access printers, scanners, and thumb drives. Furthermore, this USB 3.1 Gen 2 Type-C features a pass-through design that allows you to charge compatible devices and transfer data up to 10 Gb/s. Moreover, j5create has equipped this hub with an aluminum housing for added durability.
Compatibility
The 3-Port USB 3.1 Type-C Hub with VGA has three USB 3.1 Gen 1 Type-A SuperSpeed ports that are also backwards compatible with USB 2.0.
VGA Support
This hub supports VGA display at a max resolution of 1920 x 1200 at 60 Hz.
Micro-B USB
USB Micro B port ensures maximum performance, if you are using a highpowered USB device.
Durable Design
The 3-Port USB 3.1 Type-C Hub is built to be durable with an aluminum housed plug-and-play design. No software or drivers required.
System Requirements
Available USB Type-C port (USB 3.1 is recommended).
Available DisplayPort Alt Mode over USB Type-C port.
VGA: DisplayPort v1.1a required on graphics card to support 1920 x 1200 at 60 Hz.
Available DisplayPort Alt Mode over USB Type-C port.
VGA: DisplayPort v1.1a required on graphics card to support 1920 x 1200 at 60 Hz.
ÿ
j5create JCH411 Specs
Connections
| USB | 3 x USB 3.1 / USB 3.2 Gen 1 Type-A 1 x USB 3.1 / USB 3.2 Gen 2 Type-C |
| Display | 1 x VGAb (Female) |
Host Connections
| System Connection | 1 x USB 3.1 / USB 3.2 Gen 2 Type-C Male |
| Connection Type | Integrated Cable |
Power
| Power Source | AC Adapter, Bus Powered |
Environmental
| Operating Humidity | 0 to 85% (Recommended) |
| Operating Temperature | 32 to 104øF / 0 to 40øC (Recommended) |
| Storage Humidity | 0 to 85% |
| Storage Temperature | 14 to 149øF / -10 to 65øC |
General
| Cable Length | 0 to 9.06" / 0 to 23ÿcm |
| Dimensions | 1.3 x 3.73 x 0.61" / 33 x 94.7 x 15.6ÿmm |
| Weight | 1.76ÿoz / 50ÿg |
Packaging Info
| Package Weight | 0.175 lb |
| Box Dimensions (LxWxH) | 5.95 x 3.75 x 1" |
