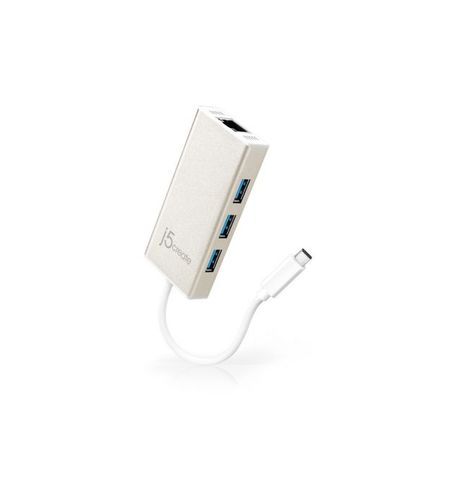

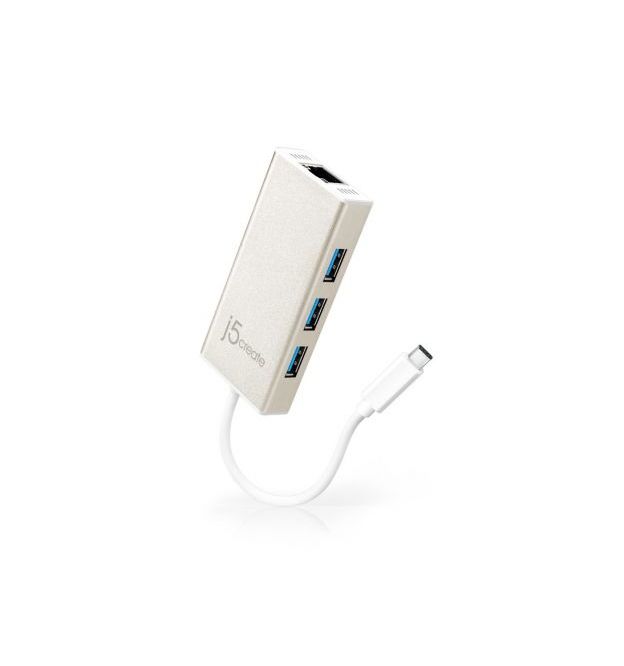

J5Create JCH471 USB Type-C Gigabit Ethernet & HUB Multi Adapter

CODE: JCH471

R 540

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

SPECIFICATIONS
Host Interface	USB Type-C Male connector
Ethernet Port	RJ-45 Female connector (Gigabit Ethernet)
USB Port	USB 3.0 Female connector x 3 ports
LED	Activity and Link LED indicators
Power Jack	DC 5V (3.5 mm OD, 1.35mm ID)
Power
Power Mode	Bus-powered or Self-powered
Power Mode	If you are using a high-power USB device please attach the power adapter that came with it or purchase a JCH471 power cord to ensure maximum performance.
Functions
Ethernet	Transfer Rate:
	1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
	IEEE:
	IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
	Modes:
	Supports Wake on LAN function, suspend mode and remote wakeup via link-change, magic packet, or Microsoft wakeup frame
	Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
	Supports Jumbo Frame
	Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Physical Specifications
Dimensions	Main body: 43.75(W)x 90.6(H)x18.6(D) mm
Dimensions	Cable length: 14.5 cm
Weight	Approximately 58.5 g (including cable)
Environments	* Windows 10 / 8.1 / 8 / 7 / Vista / XP
	* Linux kernel 3.x / 2.6.x
	* Available USB Type-C port
	* Driver not required for Windows 10 / 8.1 / Chrome OS 3.8
	* Driver will automatically install on Windows 8 / 7 (Requires Internet access)
Package Contents	* USB Type-C Gigabit Ethernet & HUB Multi Adapter (JCH471)
	* Quick Installation Guide
	* Driver CD
Warranty Information
Warranty	Manufacturer's Warranty
