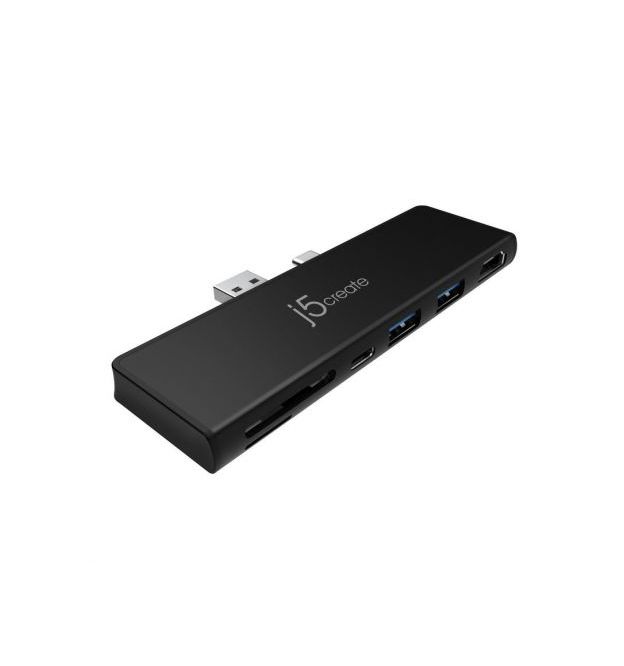

JCD324 ULTRADRIVEMINIDOCK? for Surface? Pro 7
JCD324 ULTRADRIVEMINIDOCK? for Surface? Pro 7
No driver or external power required. This 7-in-1 ULTRADRIVEMINIDOCK? enables you to get more from your Microsoft© Surface? Pro 7 by adding two USB? 3.0 Type-A ports, 4K HDMI? video compatibility, memory card reader/writer, as well as a USB-C? 3.1 Gen 2 port supporting up to 60W power delivery and data transfer speeds up to 10 Gbps. With USB-C? Power Delivery 3.0, you can now power up your Surface? Pro 7 and the mini docking station when connected to a USB-C? power adapter.
Don?t be tied down by multi-adapters that require an external power adapter or bulk housing. The mini dock is designed to keep all the ports on one side for easy cable management. It adds six essential ports from one compact hub, so they can easily fit into your laptop bag or carrying case.
Designed for Surface? Pro 7
This 7-in-1 docking station is a must-have accessory to expand connectivity options for your Surface? Pro 7
SuperSpeed+ USB? 3.1 Gen 2
USB? 3.1 Gen 2 provides up to 10 Gbps transfer speeds, which is 2x faster than USB? 3.1 Gen 1/ USB? 3.0, and 20x faster than USB? 2.0
USB-C? Power Delivery 3.0
Provides up to 60W charging power to the connected devices including the Surface? Pro, when connected to a USB-C? power adapter
USB? 3.1 Gen 2 Type-A ports
Easily connect your everyday USB? peripherals or sync/transfer files between devices with data transfer rate up to 10 Gbps
High Dynamic Range(HDR) Support
HDR-compatible HDMI? port lets you add an additional 4K display at 60 Hz
Built-In microSD? & SD?
Compatible with SD? 3.0 standard, supporting data transfer speeds up to 104 MB/s
Compact Design Powerful Performance
Sits flush against the Surface? Pro 7
Dimensions
| Hardware | |
|---|---|
audio supported Yes host connector 1 - USB-C? 3.1 male 1 - USB? Type-A male network interface N/A ports
power source Bus-powered or self-powered video output 1 - HDMI? Female warranty 2-Year Limited | |
| Performance | |
audio channel 2.1 via HDMI? compatible networks N/A displays supported 1 max data transfer rate 10 Gbps max display refresh rate 60 Hz max display resolution 3840 x 2160 | |
| Power | |
input current Up to 3A input voltage Up to 20V output current Up to 3A output voltage Up to 20V power consumption ? 400 mA power delivery Up to 60W via USB-C? | |
| Physical Specifications | |
cable length N/A color Black or Silver enclosure type Aluminum operating humidity < 85% non-condensing operating temperature 30 to 116øF (-1 to 41øC) product depth 0.37 in. (9.5 mm) product height 4.65 in. (118 mm) product weight Silver: 1.57 oz (44.5g) Black: 1.68 oz (47.5g) product width 1.44 in. (36.5 mm) storage humidity < 85% non-condensing storage temperature 0 to 155øF (-17 to 68øC) |
