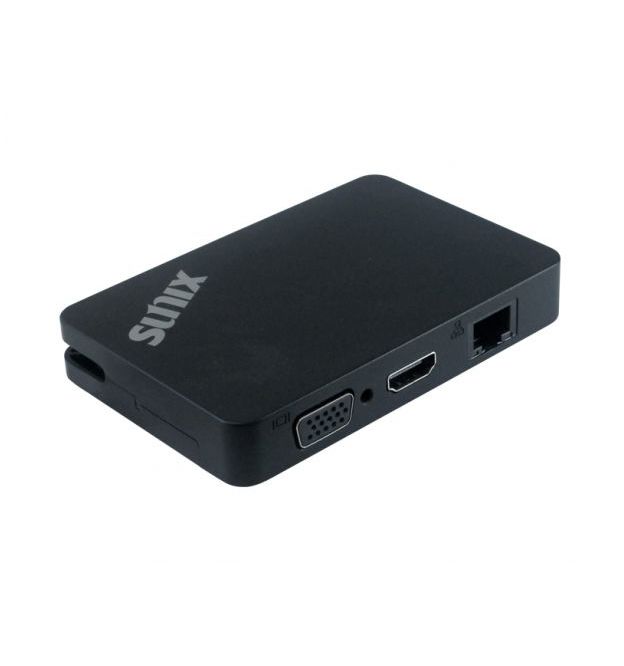

Sunix C0V50PB type-c mini dock | C0V50PB
Introduction
SUNIX portable Mini Dock (C0V50PB) offers the combined functionality of a 4ðinð1 USB 3.0 device docking station, converting a single USBðC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB TypeðC equipped laptop to a complete workstation.
ÿ
HDMI/VGA/Ethernet/USB 3.0 connects your USBðC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. This small, multipleðinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It?s compatible with major Windows©ðbased PC, Apple© MAC©ðOS, and Google
ÿ
HDMI/VGA/Ethernet/USB 3.0 connects your USBðC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. This small, multipleðinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It?s compatible with major Windows©ðbased PC, Apple© MAC©ðOS, and Google
Features
Interfaces
HDMI or VGA Video Output
Use either the HDMI port or VGA port for video output & office presentation.
Hideaway USB-C Cable with Patented 180ø Hinge Design
Compact size and light weight
Application
ÿ
Specifications
Hardware
| Model | C0V50PB |
| Description | USB-C Portable Mini Dock with USB 3.0 / Ethernet / VGA / HDMI |
| USB Standard | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Input Interface | USB TypeðC USB TypeðC Alternate Mode |
| Output Interface | USB 3.0 TypeðA x 1ðport Gigabit Ethernet x 1ðport VGA(RGB) x 1ðport HDMI Ver1.4 x 1ðport ÿ |
| LED indicator | Green for USB Link Ready |
| Power Consumption | USB Bus Power 2W @ 5VDC (board only without power output to device) |
USB Communication
| Interface | USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1 |
| Output USB Port | USB TypeðA Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps) |
| No. of Port | 1ðport |
| Power source | USB Bus-Power 5V@1.5A from USB Type-C |
| Power output | USB port supports BC charging v1.2 +5VDC / Maximum 1.5A |
| Over Current Protection | USB TypeðA Port: +5VDC |
Note: Total power output capacity will be limited by system power supply.
Ethernet Communication
| Standard | IEEE 802.3/ 802.3u/ 802.3ab |
| Interface | Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX |
| No. of Port | 1ðport |
| PCB Connector | RJ45 with LED Indication |
Video and Audio Communication
| Mode | Extend mode, Mirror mode, Screen Rotation mode | |||||||||||||||||||||||||||||||||||||||||||||
| Standard | HDMI Ver1.4b VGA RGB | |||||||||||||||||||||||||||||||||||||||||||||
| Video | HDMI: Max resolution up to 1920x1200 @ 60Hz VGA: Max resolution up to 1920x1200 @ 60Hz Note: HDMI and VGA video output will NOT work synchronously. | |||||||||||||||||||||||||||||||||||||||||||||
| Resolution Support |
| |||||||||||||||||||||||||||||||||||||||||||||
| Audio | Digital Audio output over HDMI connectivity Note: VGA does not support audio output | |||||||||||||||||||||||||||||||||||||||||||||
| PCB Connector | Standard HDMI Female x 1ðport VGA DðSub 15ðpin Female x 1ðport |
Driver Support (Driver Free)
| Windows | Windows 10 (32/64ðbit) or above |
| APPLE MAC | MAC OS X 10.10 (Yosemite) or above |
| Google Chrome | Chrome OS Version 42.x or above |
