Sunix CCV50PB type-c minidock | CCV50PB

CODE: CCV50PB

R 1335

IN STOCK

+ −

Ask a question

Delivery

Payment options

Our advantages

Find similar

Description

Introduction

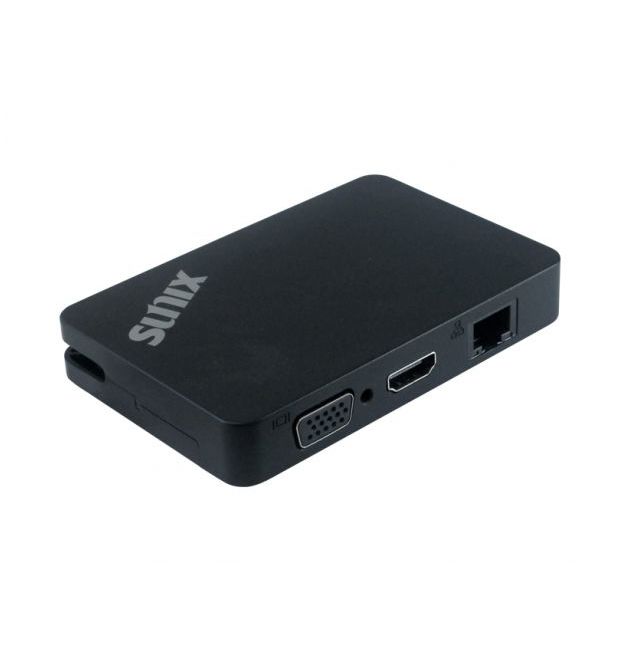

SUNIX portable Mini Dock (CCV50PB) offers the combined functionality of a 4ðinð1 USB 3.0 device docking station, converting a single USBðC port into multiple connection ports, including a HDMI (video & audio), VGA, Gigabit Ethernet network, and USB 3.0 connectivity. There's no need to plug in multiple cables every time you return to your desk, making easy to connect your USB Type ðC equipped laptop to a complete workstation.ÿ

HDMI/VGA/Ethernet/USB 3.0 connects your USBðC equipped mobile computer to an external display with your choice of HDMI or VGA outputs. You can also connect to the internet and all your necessary external USB peripherals via Ethernet and USB 3.0 ports. With USB Power Delivery feature, it enables the maximum functionality of USB by providing more flexible power delivery along with data over an USB TypeðC tethered cable. This small, multipleðinterfaces, tethered cable included, compact dock will replace up to 3 dongles, leaving you more space in your bag and on your desk. It?s compatible with major Windows©ðbased PC, Apple© MAC©ðOS, and Google© Chrome operation system.

Specifications

Hardware

Model	CCV50PB
Description	USB-C Portable Mini Dock Plus Power with USB 3.0 / Gigabit Ethernet / VGA / HDMI / Power Charging
USB Standard	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Input Interface	USB TypeðC USB TypeðC Alternate Mode
Output Interface	USB Power Charging TypeðC x 1ðport USB 3.0 TypeðA x 1ðport Gigabit Ethernet x 1ðport VGA(RGB) x 1ðport HDMI Ver1.4 x 1ðport
LED indicator	Green for USB Link Ready
Power Consumption	USB Bus Power 2W @ 5VDC (board only without power output to device)

USB Communication

Interface	USB 3.1 Gen1 Controller Interface (xHCI) Rev1.1
Output USB Port	USB TypeðA Female Receptacle USB 3.0(5Gbps), High Speed(480Mbps), Full Speed(12Mbps), Low Speed (1.5Mbps)
No. of Port	1ðport
Power source	USB Bus-Power 5V@1.5A from USB Type-C USB Power Delivery 5/20VDC
Power output	USB port supports BC charging v1.2 +5VDC / Maximum 1.5A
Over Current Protection	USB TypeðA Port: +5VDC

Note: Total power output capacity will be limited by system power supply.

Ethernet Communication

Standard	IEEE 802.3/ 802.3u/ 802.3ab
Interface	Gigabit Ethernet 10/100/1000 Mbps with Auto MDIX
No. of Port	1ðport
PCB Connector	RJ45 with LED Indication

Video and Audio Communication

Mode

Extend mode, Mirror mode, Screen Rotation mode

Standard

HDMI Ver1.4b
VGA RGB

Video

HDMI: Max resolution up to 1920x1200 @ 60Hz
VGA: Max resolution up to 1920x1200 @ 60Hz
Note: HDMI and VGA video output will NOT work synchronously.

Resolution Support

Resolutionÿ	Nameÿ	Refresh Rate
640x480	VGA	60ÿ
800x600	SVGA	60ÿ
1024x768ÿ	XGAÿ	60ÿ
1280x720	720pÿ	60ÿ
1280x768ÿ	WXGA+	60ÿ
1280x800	WXGAÿ	60ÿ
1280x1024	SXGA	60ÿ
1366x768	WXGA+	60ÿ
1400x1050	SXGA+	60ÿ
1600x900	ð	60ÿ
1600x1200	UXGA	60ÿ
1680x1050	WSXGA+	60ÿ
1920x1080	1080p	60ÿ
1920x1200	WUXGA	60ÿ
