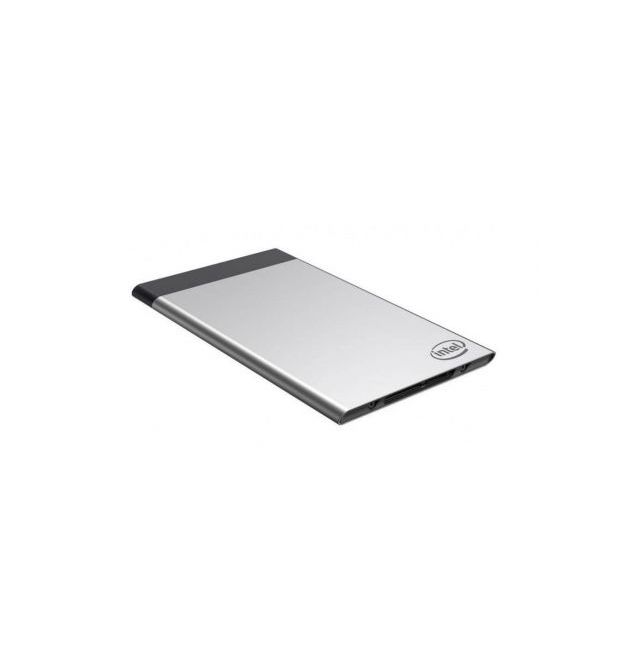

INTEL COMPUTE CARD BLKCD1C64GK MINI PC CELERON N3450 | BLKCD1C64GK
INTEL COMPUTE CARD BLKCD1C64GK MINI PC CELERON N3450 2.2GHZ 4GGB DDR3 64GB SSD DP HDMI 2XDISPLAYS WIFI BT FOR DIGITAL SIGNAGE KI
Summary
Intel CD1C64GK. Processor frequency: 1.1 MHz, Processor model: N3450, Processor socket: BGA 1296. Maximum internal memory: 4 GB, Internal memory type: LPDDR3, Memory clock speed: 1866 MHz. Wi-Fi standards: IEEE 802.11ac, HDMI version: 1.4b. Intel© Virtualization Technology (Intel© VT): VT-x. Board dimensions: 94 x 55 mm, Height: 5 mm
Specifications | |
| Product Code | BLKCD1C64GK |
| Item | Intel Compute Card CD1C64GK |
| Code Name | N/A |
| Essentials | |
| Status | Launched |
| Launch Date | Q3'17 |
| Socket | Compute Card |
| Embedded Storage | 64 GB |
| DC Input Voltage Supported | 12V +/- 5% |
| Processor Included | Intel Celeron Processor N3450 (2M Cache, up to 2.2 GHz) |
| Memory & Storage | |
| Included Memory | Yes |
| Max Memory Size (dependent on memory type) | 4 GB |
| Memory Types | LPDDR3 1866 MHz |
| ECC Memory Supported | No |
| Processor Graphics | |
| Integrated Graphics | Yes |
| Graphics Output | DisplayPort 1.2 and HDMI 1.4b via DDI |
| # of Displays Supported | 2 |
| I/O Specifications | |
| Audio (back channel + front channel) | Digital Display Interface |
| Integrated Wireless | Intel Dual Band Wireless-AC 7265 |
| Integrated Bluetooth | Yes |
| Package Specifications | |
| Low Halogen Options Available | See MDDS |
| Advanced Technologies | |
| Intel vPro Technology | No |
| Intel Remote Wake Technology | Yes |
| Intel HD Audio Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Platform Trust Technology (Intel PTT) | Yes |
| Security & Reliability | |
| Intel Trusted Execution Technology | No |
