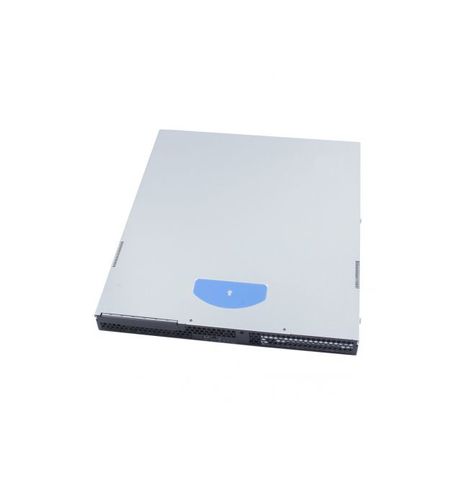

Item#: 9SIAE2572F6332 Intel SR1630GP 1U Rack Server Barebone LGA 1156 Intel 3420 DDR3 1333/1066/800
Product description
Intel 1U Server System SR1630GP with NA power cord (1U Intel Server Chassis SR1630SPP + Intel Server Board S3420GPLC), fixed 350 W PSU, supports up to 2 fixed HDs, 2 SATA cable, 1 USB cable, 1 front panel cable, 1U passive heat sink, basic rack rail, 1 PCI-E x8 riser card.
| ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ 8/21/2017 12:33:29 PMÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ | ÿ |
| ÿ | ÿ |
| Code Name | ÿGrosse Pointÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ |
| Launch Date | Q3'09 |
| Status | End of Life |
| Compatible Product Series | 42926, 43565, 43522, 43130 |
| Chassis Form Factor | 1U Rack |
| Chassis Dimensions | 1.7" x 16.9" X 20" |
| Socket | LGA1156 |
| System Board | Intel© Server Board S3420GPLC |
| Board Chipset | Intel© 3420 Chipset |
| Target Market | Cloud/Datacenter |
| Rack-Friendly Board | Yes |
| Power Supply | 350 W |
| Power Supply Type | AC |
| Redundant Fans | Not Supported |
| Redundant Power Supported | No |
| Heat Sink Included | Included |
| Included Items | (2) Fixed drive brackets; (1) Cabled front panel; (2) Fixed cooling fans; (1) Low-profile PCI Express riser; (1) Fixed 350W power supply; (2) SATA cables; (1) USB cable; (1) Optical drive assembly; (1) Processor heatsink; (1) Basic rail kit; (1) Pair rack handles |
| # of Front Drives Supported | 2 |
| Front Drive Form Factor | Fixed 2.5" or 3.5" |
| Recommended Customer Price | N/A |
| Datasheet | ÿ |
| Description | Highly Integrated, 1U rack solution for cost-sensitive customers |
| Additional Information URL | ÿ |
| Memory Types | DDR3 ECC UDIMM, RDIMM |
| Max # of DIMMs | 6 |
| Max Memory Size (dependent on memory type) | 32 GB |
| Integrated Graphics ? | Yes |
| PCI 32/33 | 1 |
| PCIe x8 Gen 2.x | 2 |
| PCIe x4 Gen 1.x | 1 |
| # of USB Ports | 5 |
| Total # of SATA Ports | 6 |
| RAID Configuration | Onboard SW RAID 0, 1, 5, 10 |
| # of Serial Ports | 1 |
| Integrated LAN | Dual GbE |
| # of LAN Ports | 2 |
| Max CPU Configuration | 1 |
| Intel© Remote Management Module Support | No |
| Integrated BMC with IPMI | IPMI 2.0 |
| Intel© Node Manager | No |
| Intel© Advanced Management Technology | No |
| Intel© Server Customization Technology | No |
| Intel© Build Assurance Technology | No |
| Intel© Efficient Power Technology | No |
| Intel© Quiet Thermal Technology | No |
