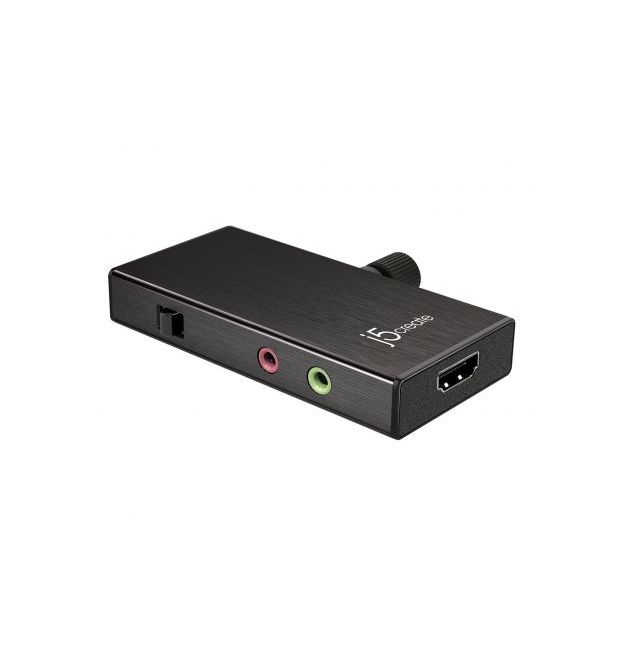

JVA02 Live Capture Adapter HDMI? to USB-C? with Power Delivery

JVA02
R 1470
IN STOCK
Delivery
Payment options
Our advantages
Find similar

JVA02 Live Capture Adapter HDMI? to USB-C? with Power Delivery

Perfect for live streaming ?ÿThe JVA02 is a lightweight, stylish and powerful HDMI? capture card. It consumes very low power, yet can capture 1080p with 60 frames of uncompressed video under USB? 3.0. It can be broadcast continuously with three mixing modes and Power Delivery 3.0. Connect the JVA02 to your cold shoe adapter on your camera for the perfect combination of ease-of-use and functionality.

Specifications

OS

Driver Free:
Windows© 8.1/10, macOS©, Linux©

Driver:
Windows© 7

Resolution

  • 640 x 480 @ 60/72/75 fps
  • 720 x 480 @ 60 fps
  • 720 x 576 @ 50 fps
  • 800 x 600 @ 60/72/75 fps
  • 848 x 480 @ 60 fps
  • 1024 x 768 @ 60/70/75 fps
  • 1152 x 864 @ 75 fps
  • 1280 x 720 @ 50/60 fps
  • 1280 x 768 @ 60/75 fps
  • 1280 x 800 @ 60/75 fps
  • 1280 x 960 @ 60 fps
  • 1280 x 1024 @ 60/75 fps
  • 1360 x 768 @ 60 fps
  • 1366 x 768 @ 60 fps
  • 1440 x 480 @ 60 fps
  • 1440 x 900 @ 60/75 fps
  • 1440 x 900 @ 60/75 fps
  • 1600 x 900 @ 60 fps
  • 1600 x 1200 @ 60 fps
  • 1680 x 1050 @ 60 fps
  • 1920 x 1080 @ 24/25/30/50/60 fps

Audio Frequency

48 kHz

Power Delivery

PD3.0, 60W

USB?

Interface:
USB Type-C? 3.1 Gen1
Device:
UAC, UVC
Mode:
Isochronous

MIC

Stereo microphone supported 24-bit sigma-delta ADC

Headset

40 mW output power into 16? at 3.3V THD -75 dB at 20 mW SNR 90 dB with 16? load

Compression

USB? 2.0: MJPG
USB? 3.0: MJPG / YUV 4:2:2

Power Consumption

USB? 2.0: 220 mA (5V)
USB? 3.0: 280 mA (5V)

Physical Specifications

Case Material

Aluminum

ÿ

Package Contents

  • JVA02 Live Capture UVC HDMI? to USB? Video Capture
  • Cold shoe x 2
  • USB-C? 2.0 to USB-C? cable
  • USB-C? 3.0 to USB? Type-A cable
  • User Manual
  • Quick Installation Guide
