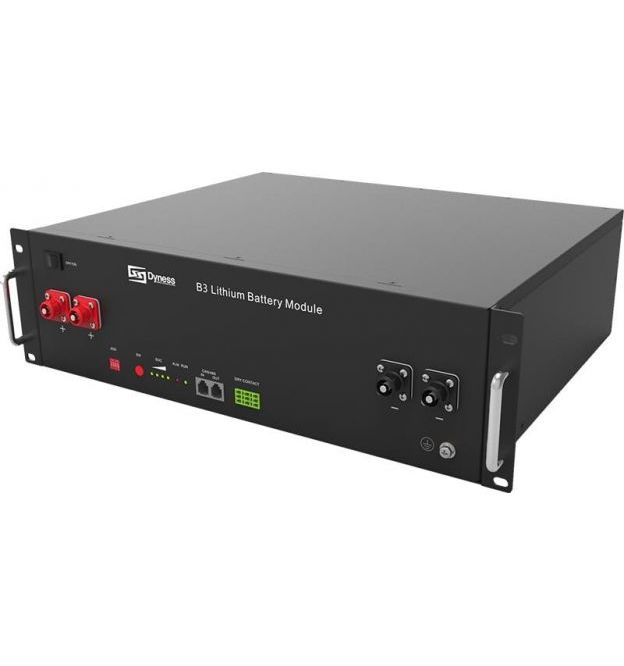

Mecer 3.5Kwh Lithium Battery 48 Volts (M3000)
Mecer Dyness B3 48V DC 3.5 kWh Lithium Battery, 6000 cycles calendar life @ 80% DOD, 74Ah nominal capacity, 50A Maximum continuous discharge current, 50A Maximum continuous charge current.
ÿ
Features and advantages.
- LiFePO4 battery, Safe, Longer life span
- Modular design, Easy to stack, Quick installation
- Larger energy capacity at 3.5 kWh, up to 56kWh total in paralleling
- Natural cooling with optional heat/fan configuration
- Wide temperature range of -20~50øC
ÿÿÿÿÿÿÿ Dyness Energy Storage System.
- Start using clean energy, Day and Night.
- Dyness owns the most sophisticated team with top class R&D experts from the industry.
- We devote ourselves to responsible engineering of the safest, greenest possible future for you and your family.
| Dyness Model | B3 |
| Nominal Energy | ÿ3.6kWh |
| Nominal Capacity | ÿ75Ah |
| Nominal Voltage | 48V |
| Max. Continuous Discharge Current | 50A |
| Max. Continuous Charge Current | 50A |
| Charging Cut-Off Vol. | 54V |
| Discharging End-Off Vol. | 40.5V |
| Net Weight | 30Kg |
| Dimension[W*D*H] | ÿ400 X 360 X 133.5mm |
| Protection Level | ÿIP20 |
| Calendar Life m | 6000 Cycles |
| Charging Temperature Range | 0~50øC |
| Discharging Temperature Range | ÿ-20~50øC |
| Communication | CAN / RS485 |
| Configuration | Up to 144kWh total energy, 40 modules parallel at most |
| Recommend C Rate | 0.5C |
| Warranty | 10 years |
