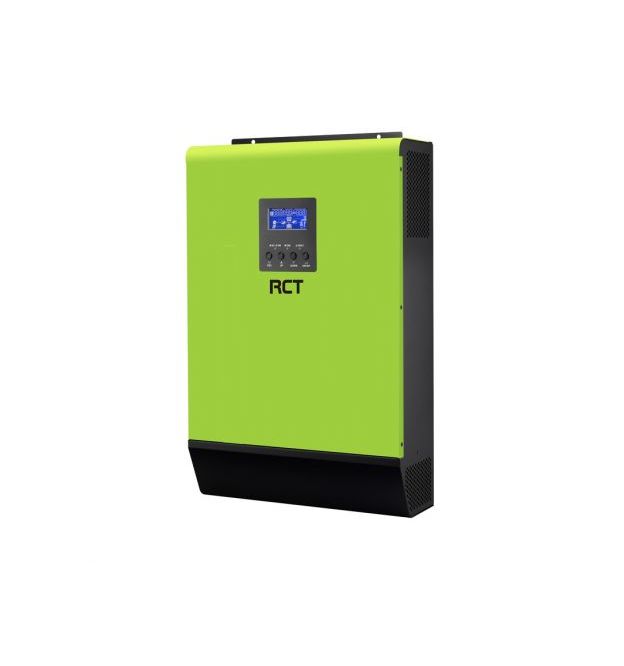

RCT Axpert King 5K48 5kVA 5kW 48V Hybrid Inverter
Features
- Removable LCD control module with multiple communications
- Built-in Bluetooth for mobile monitoring (Android App is available)
- Supports USB On-the-Go function
- Reserved communication port for BMS (RS485, CAN-BUS or RS232)
- Replaceable fan design for ease of maintenance
- Supply load from Grid or PV, even if battery is not available
- Configurable AC/PV output usage timer and prioritization
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal computers
- Compatible to Utility Mains or generator input
- Auto restart while AC is recovering
- Cold start function
ÿ
Input
- Voltage: 230VAC.
- Selectable Voltage Range: 170-280VAC (For Personal Computers) 90-280VAC (For Home Appliances).
- Frequency Range: 50Hz/60Hz (Auto sensing).
Output
- AC Voltage Regulation: 230VAC ñ 5%.
- Surge Power: 10000VA.
- Efficiency (Peak): 90%.
- Transfer Time: 10 ms (For Personal Computers) 20 ms (For Home Appliances).
- Waveform: Pure sine wave.
Battery and AC Charger
- Battery Voltage: 48VDC.
- Floating Charge Voltage: 54VDC.
- Overcharge Protection: 66VDC.
Solar Charger
- Maximum PV Array Power: 4500W.
- MPPT Range @ Operating Voltage: 120VDC - 430VDC.
- Maximum PV Array Open Circuit Voltage: 450VDC.
- Maximum Solar Charge Current: 80A.
- Maximum AC Charge Current: 80A.
- Maximum Charge Current: 80A.
