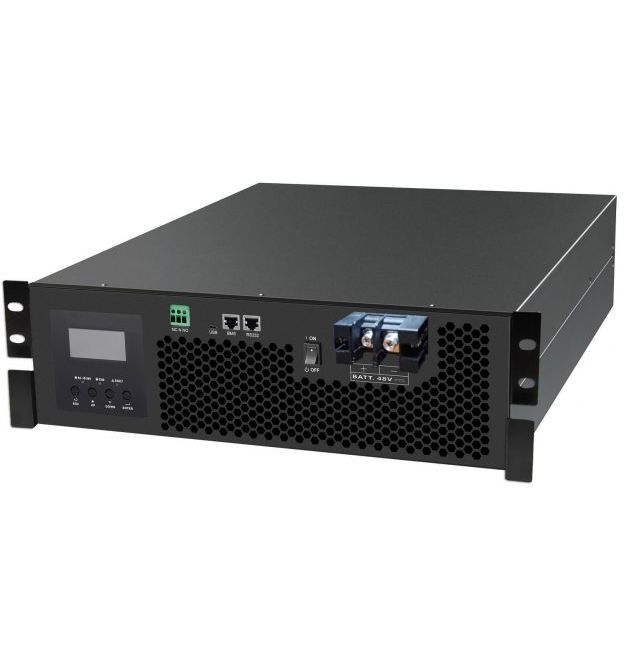

King 5K Rm - 48V 4000W Mppt
King 5K RM - 48V 4000W MPPT
SOLAR CHARGER & AC CHARGER
| Maximum PV Array Power | 4000W |
| MPPT Range @ Operating Voltage | 60 VDC ~ 115 VDC |
| Maximum PV Array Open Circuit Voltage | 4000W |
| Maximum Solar Charge Current | 80 A |
| Maximum AC Charge Current | 60 A |
| Maximum Charge Current | 140 A |
| Maximum Efficiency | 98% |
| Standby Power Consumption | 2W |
Parallel up to 6 inverters to get the desired output. These inverters can be used in single phase or 3 phase application. Have a look at the manual to look at the various configuration options available on this inverter.
ÿ
INPUT (DC)
| Voltage | 230VAC ñ 5% |
| Selectable Voltage Range | 10000VA |
| Frequency Range | 93% |
BATTERY
| Battery Voltage | 48 VDC |
| Floating Charge Voltage | 54 VDC Max: 58 VDC |
| Overcharge Protection | 60 VDC |
DIMENSIONS & WEIGHT
| Height | 355mm |
| Width | 272mm |
| Depth | 100mm |
| Weight | 13.5 kg |
